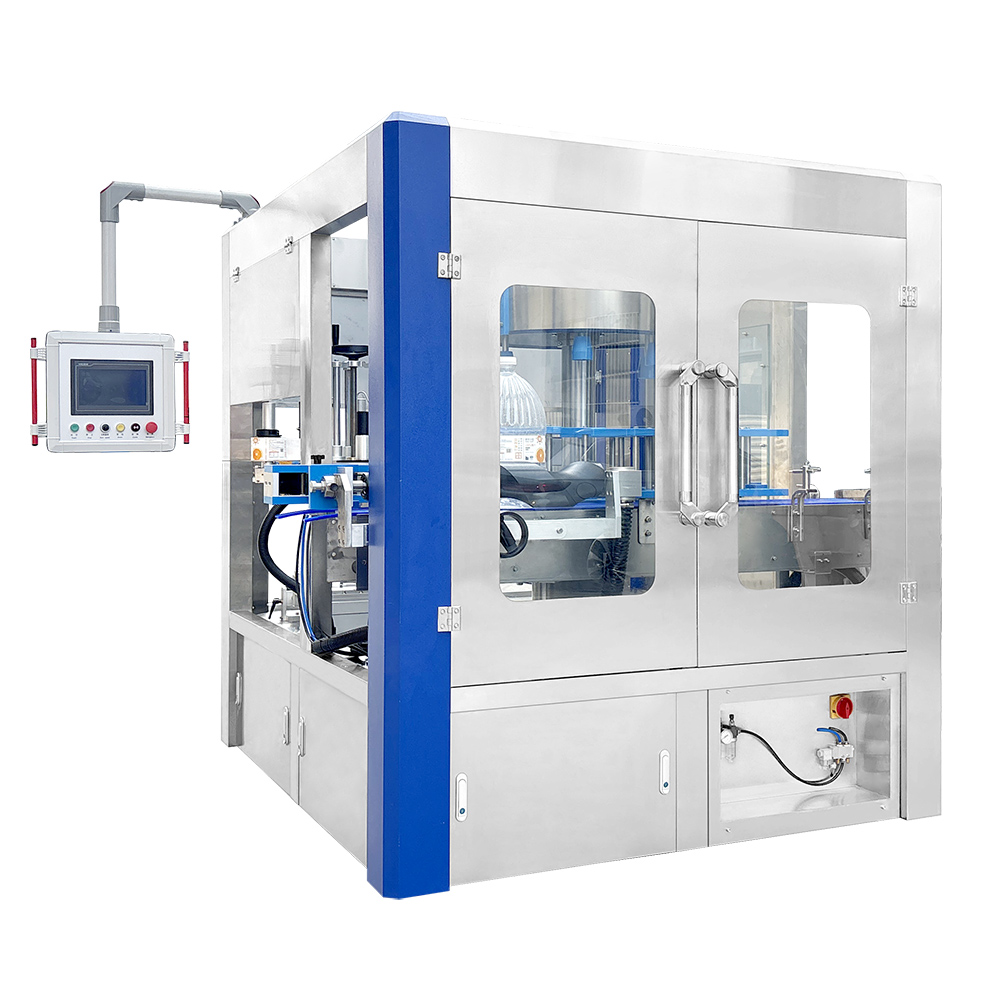

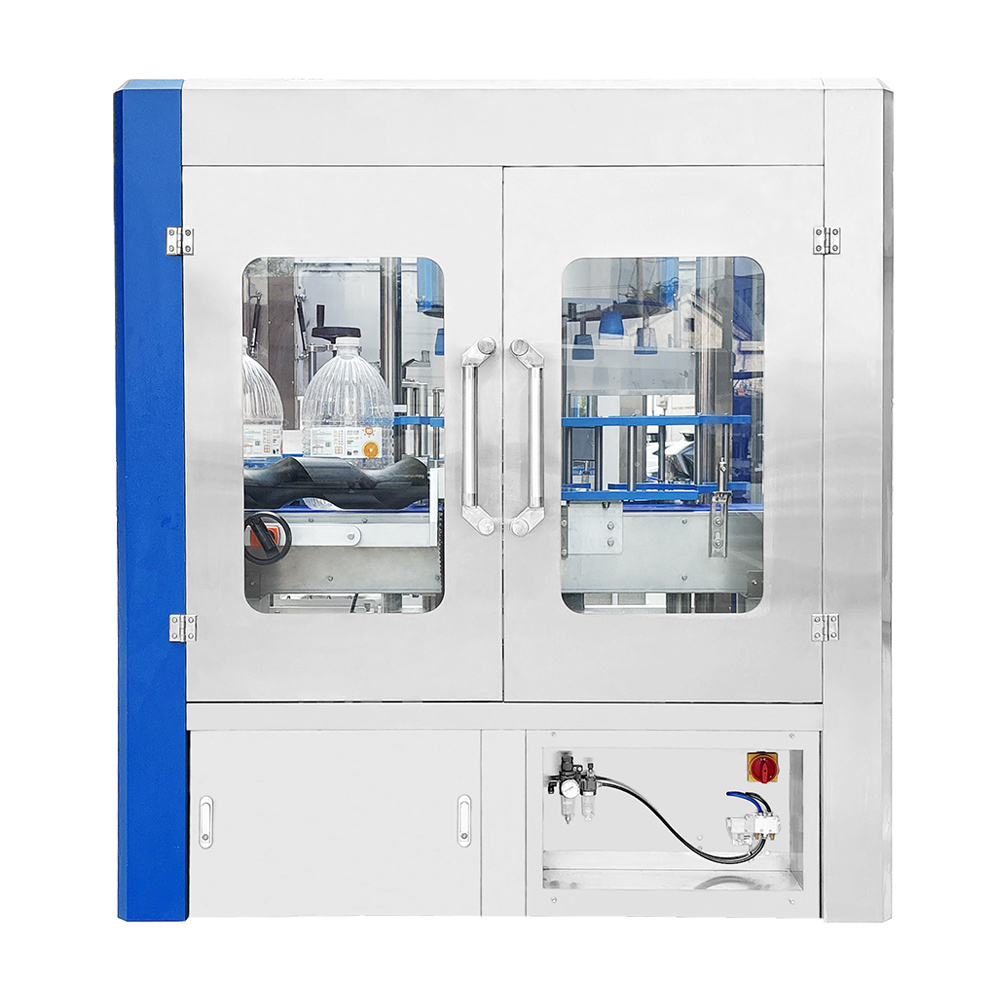

Rotary Self-Adhesive Labeling Machine

Product Review

Rotary Self-Adhesive Labeling Machine is a high-speed, automated solution for applying labels to bottles or containers. Bottles are transferred from a straight production line onto a rotating turntable, where each bottle is securely held in place. As the turntable rotates, the labeling heads accurately apply labels on one or multiple sides of the product.

The machine can be customized with different numbers of labeling heads and platforms to match production speed and labeling requirements. With Feyvan’s advanced rotary technology, manufacturers benefit from fast, precise, and consistent labeling, making it ideal for beverage, cosmetic, pharmaceutical, and industrial products. Key advantages include stable bottle handling, precise label placement, and the ability to handle multiple label positions automatically, all of which improve production efficiency and reduce errors.

 Feyvan Rotary Self-Adhesive Labeling Machine is a high-speed, precision labeling solution for round bottles and cylindrical containers.  This machine is widely used in beverage, food, cosmetic, pharmaceutical, and chemical production lines.Manufacturers rely on Feyvan labeling machines for their ability to deliver consistent, high-precision label placement, smooth operation, and minimal downtime. The combination of servo-driven label feeding, mechanical rotary positioning, and dual pressure roller system ensures labels are applied accurately and wrinkle-free. Production managers highlight the tool-free adjustments and intuitive touchscreen interface, enabling quick changeovers for different bottle sizes and label types.

Key Features

1. High-Speed Rotary Labeling – Capable of 8,000–12,000 bottles per hour.

2. Servo-Driven Precision Control – Label stop accuracy ±0.3 mm.

3. Versatile Label Compatibility – Supports paper, PVC, PET, metallic, laminated, and transparent labels.

4. Mechanical Rotary Bottle Positioning – Bottom molds ensure accurate orientation.

5. Advanced Sensor Detection – German SICK sensors detect bottles and label gaps.

6. Dual Pressure Roller Feeding – Maintains label tension to prevent wrinkles.

7. Tool-Free Adjustment – Quick adaptation to multiple bottle sizes.

8. Durable Stainless Steel Construction – Resistant to corrosion and industrial wash-down environments.

9. User-Friendly Touchscreen Interface – Adjust speed, label delay, and alignment easily.

10. Automatic Speed Synchronization – Maintains consistent labeling despite upstream or downstream line variations.

Technical Specifications

Item

Specification

Electrical Configuration

• PLC & Control System: Beckhoff CX5120 for precise motion control.

• Servo Motors & Drives: Gaochuang servo system ensures smooth label feeding.

• Sensors: German SICK photoelectric sensors for bottle and label detection.

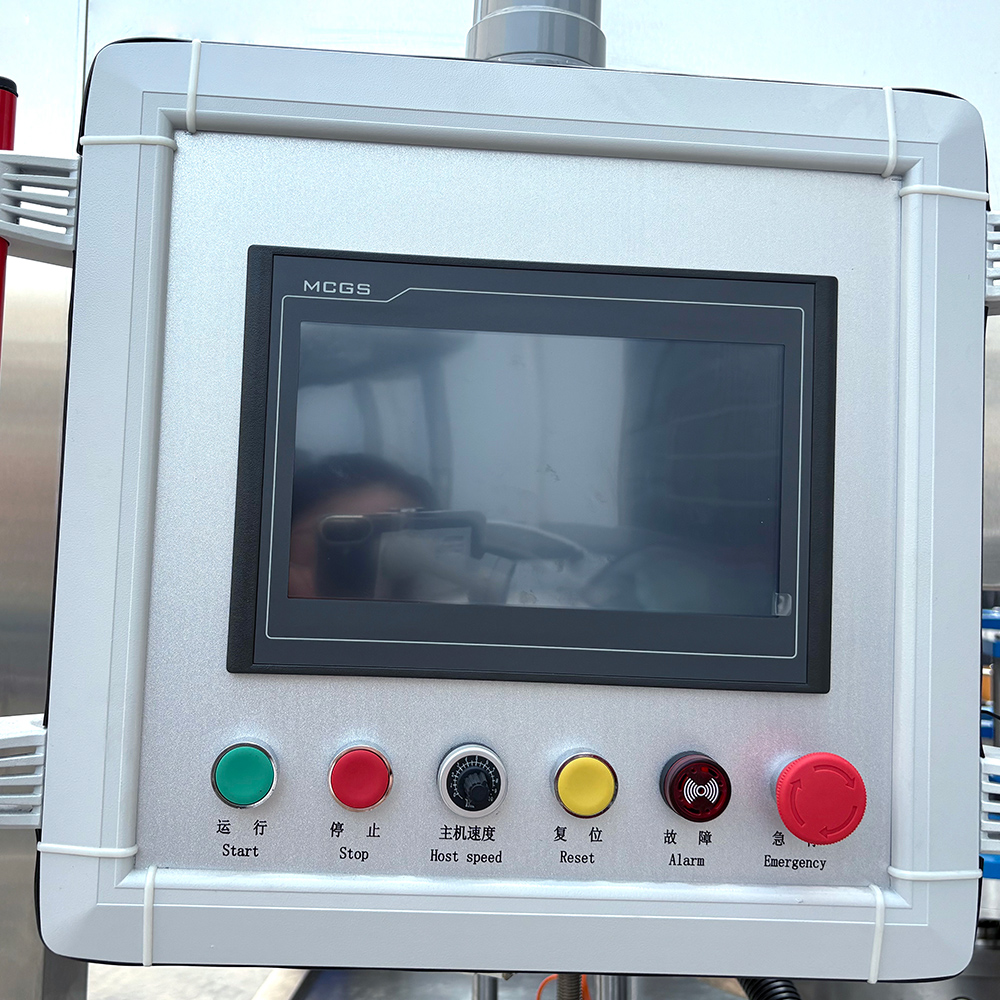

• Touchscreen HMI: 10-inch Kunlun Tongtai interface for intuitive operation.

• Power Supply: 220V / 380V, 50Hz, total power 2–6 KW.

• Safety Components: Schneider switches, contactors, and circuit protection for secure operation.

Working Process

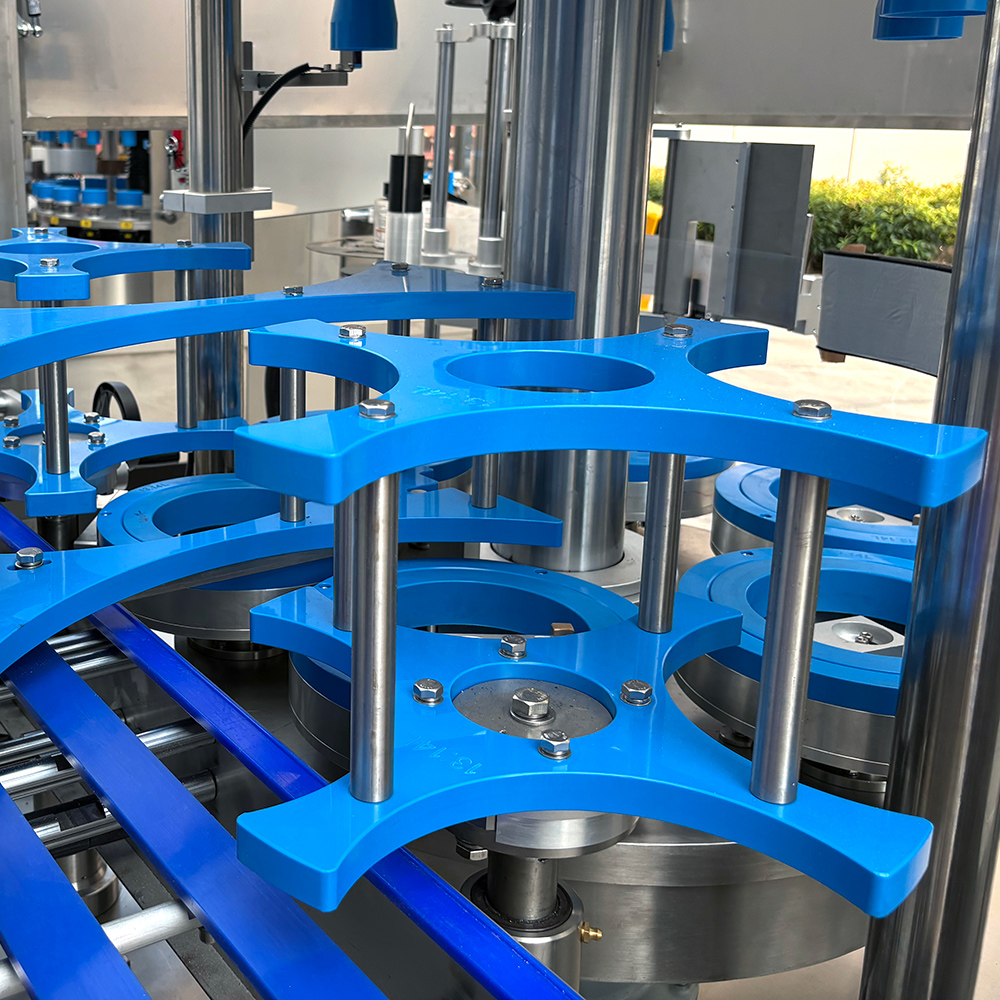

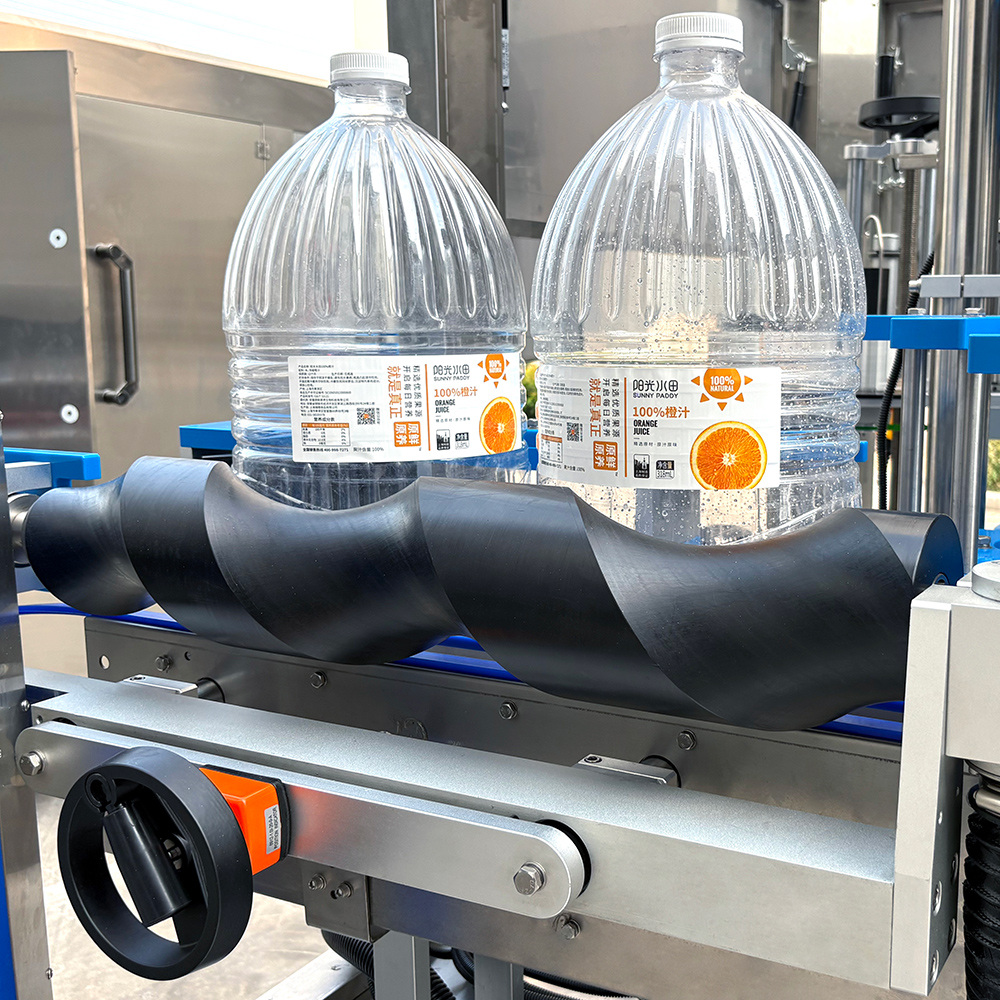

1. Bottle Feeding – Bottles enter the rotary star wheel via adjustable guide rails.

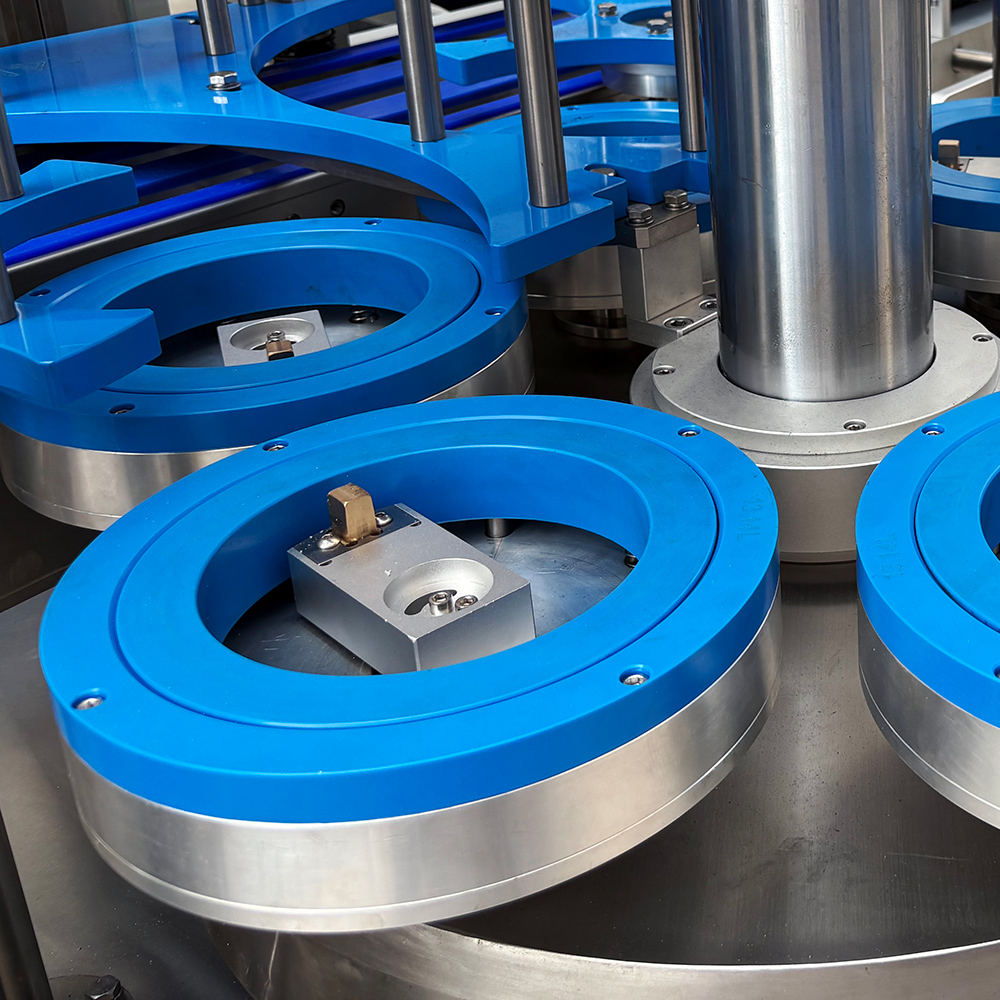

2. Bottle Detection & Positioning – SICK sensors detect bottle presence; Feyvan bottom molds ensure precise orientation.

3. Label Feeding & Application – Servo-controlled heads apply labels accurately; dual pressure rollers maintain tension and prevent wrinkles.

4. Verification & Output – Optional inspection systems confirm label placement before bottles exit the machine.

Application Industries

Feyvan rotary self-adhesive labeling machines are versatile and used in:

• Beverage Industry: Bottled water, soft drinks, juice, and alcoholic beverages.

• Food Industry: Sauces, oils, condiments, and edible products.

• Cosmetic Industry: Lotions, creams, personal care products.

• Pharmaceutical Industry: Syrups, medicines, and supplement bottles.

• Chemical & Industrial Products: Cleaning agents, chemicals, and small containers.

Feyvan machines provide consistent, accurate, and efficient labeling across all applications.

Why Choose Feyvan Labeling Machines?

Feyvan is globally recognized for rotary self-adhesive labeling solutions that combine precision, flexibility, and reliability:

• Engineering Excellence: Servo-driven control ensures ±0.3 mm labeling accuracy.

• Flexible Automation: Quick, tool-free adjustments for various bottle sizes.

• Durable Design: Stainless steel frame and high-quality components provide long-term reliability.

• Industry Expertise: Over a decade of specialization in automated labeling machinery.

• Operational Efficiency: High-speed labeling improves throughput while reducing labor costs.

• Global Support: Technical support and spare parts service worldwide.

Feyvan offers manufacturers a trusted partner for consistent quality, efficiency, and innovation.

FAQ – Feyvan Rotary Labeling Machines

Q1: Which bottle types are compatible?

Supports round bottles and cylindrical containers in beverage, cosmetic, and pharmaceutical industries.

Q2: Can it handle transparent or metallic labels?

Yes, using capacitive SICK sensors for all self-adhesive labels.

Q3: What is the maximum labeling speed?

Up to 12,000 bottles/hour, depending on bottle and label size.

Q4: How easy is it to switch bottle sizes?

Tool-free adjustments allow rapid changeover.

Q5: Can it integrate with existing production lines?

Yes, supports automatic synchronization with upstream and downstream equipment.

Q6: What warranty and support are provided?

One-year free maintenance plus lifetime technical support from Feyvan.
