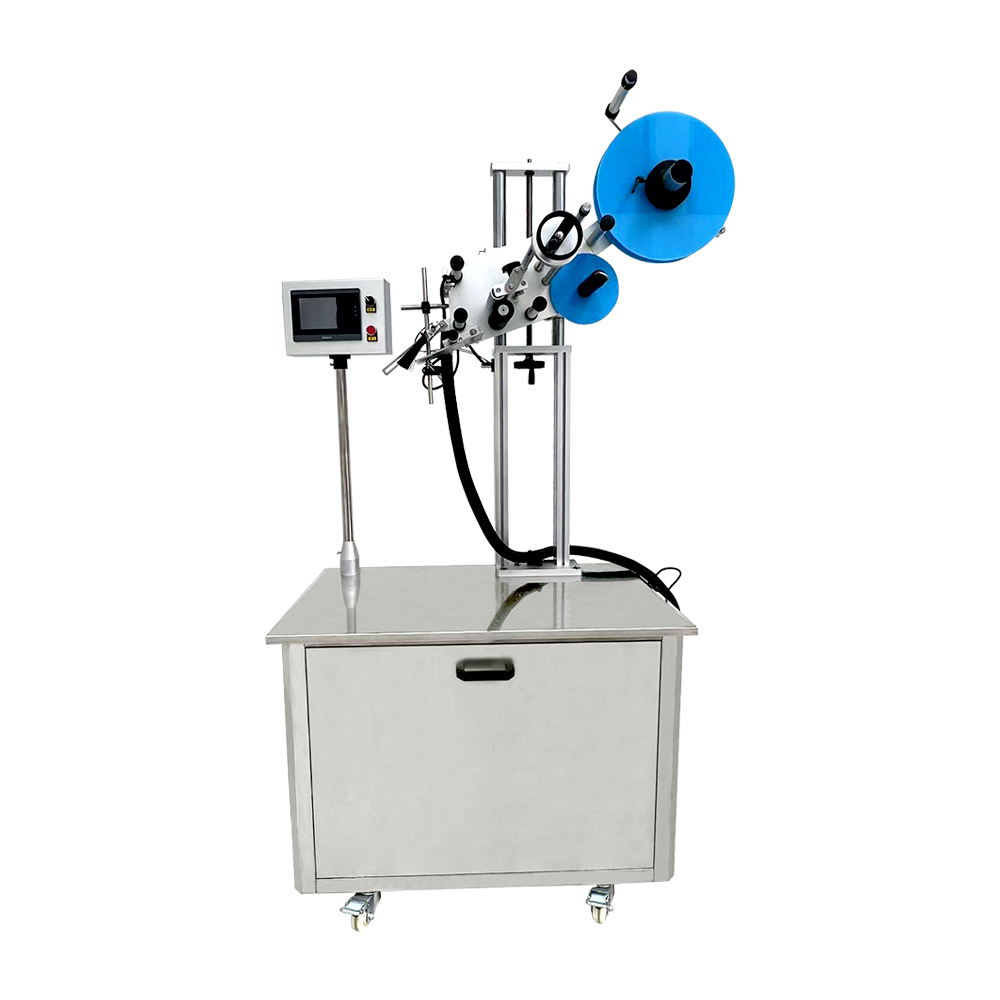

The Automatic Carton Labeling Machine is designed for precise and efficient labeling of cartons, corrugated boxes, cardboard boxes, and shipping cases. It is widely used in the food, beverage, pharmaceutical, cosmetics, logistics, and e-commerce industries.
Feyvan provide set of carton labeller can apply labels on the top, side, or top and side of cartons with high accuracy and stable performance.
Feyvan
1850*1560*2100mm
150 Kg
Zhangjiagang, China
304 stainless steel
ogistics & Warehousing
3000-9000BPH（customized)
One Year and Life-long Technical Support
The machine is designed for top labeling of various cartons, cardboard boxes, corrugated boxes, and shipping cases. It is widely used in the food, beverage, pharmaceutical, cosmetics, logistics, e-commerce, and consumer goods industries.
Suitable for different carton sizes
Label Width: 15-130 mm
Max. Label Length: 350 mm
Label Type: Self-adhesive labels
Power Supply: 220V / 50Hz
Power Consumption: 3000W
Touch Screen: WEINVIEW
PLC Module: SIEMENS, Germany
Servo Motor, Driver, Power Cable & Encoder Cable: PANASONIC
Label Sensor: SICK, Germany
Variable Frequency Motor: GPG, Taiwan
Wide-range bidirectional adjustment and six-dimensional adjustment mechanism for easy machine setup.
Automatic carton size recognition with dual photoelectric sensor detection.
Active label feeding and automatic label tension control for stable and accurate labeling.
Barcode detection system can be added as an option.
Labeling roller or brush system available according to different applications, reducing wear parts.
Equipped with label detection and no-label alarm functions.
Emergency stop button and waterproof electrical control cabinet ensure safe and easy operation.
Easy integration with automatic packaging and conveying lines.
