Feyvan
1850*1560*2100mm
200kg
Zhangjiagang, China
304 stainless steel
envelop, box,carton,bags
3000~9000BPH
One Year and Life-long Technical Support
| Availability: | |
|---|---|

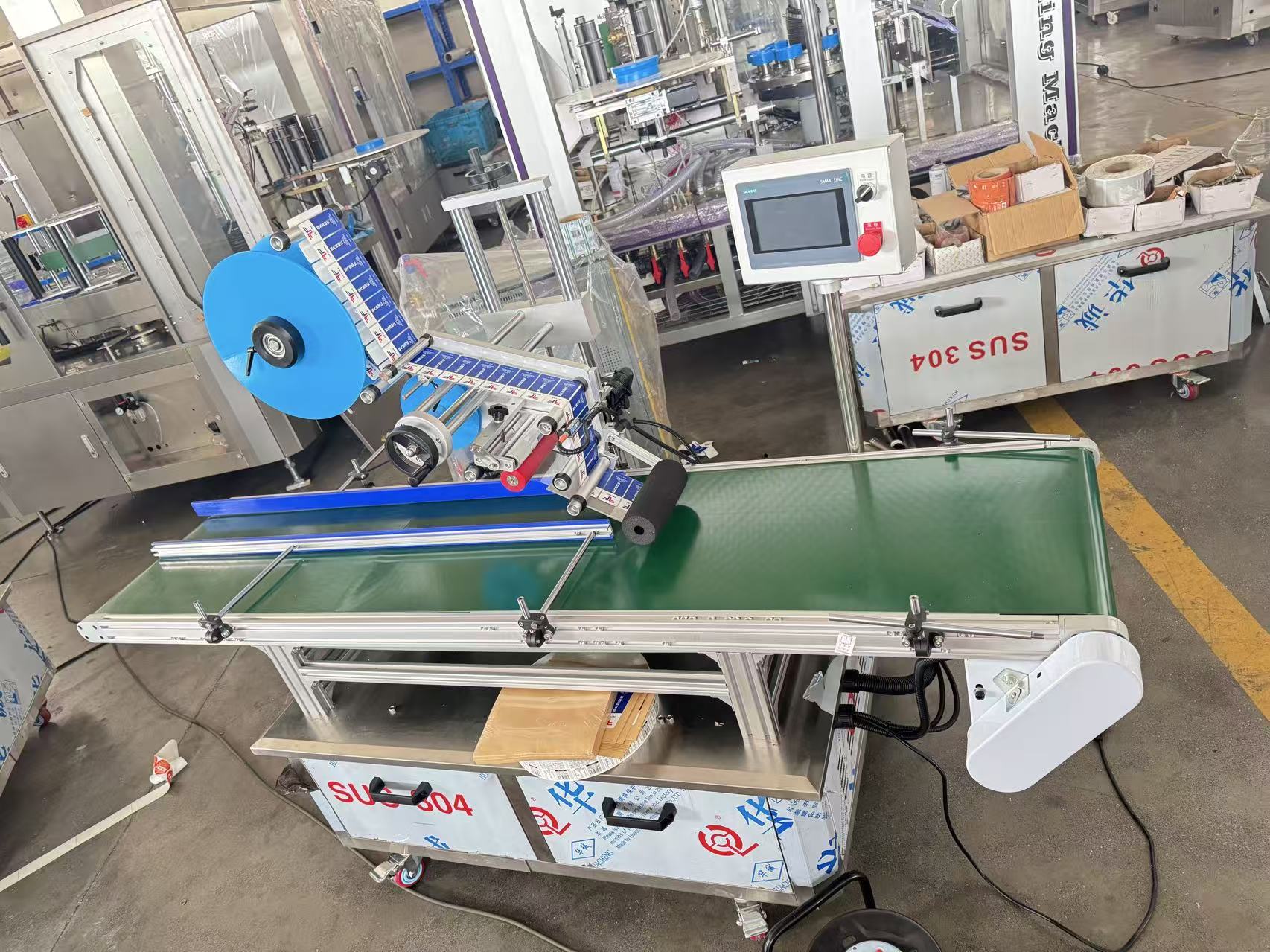

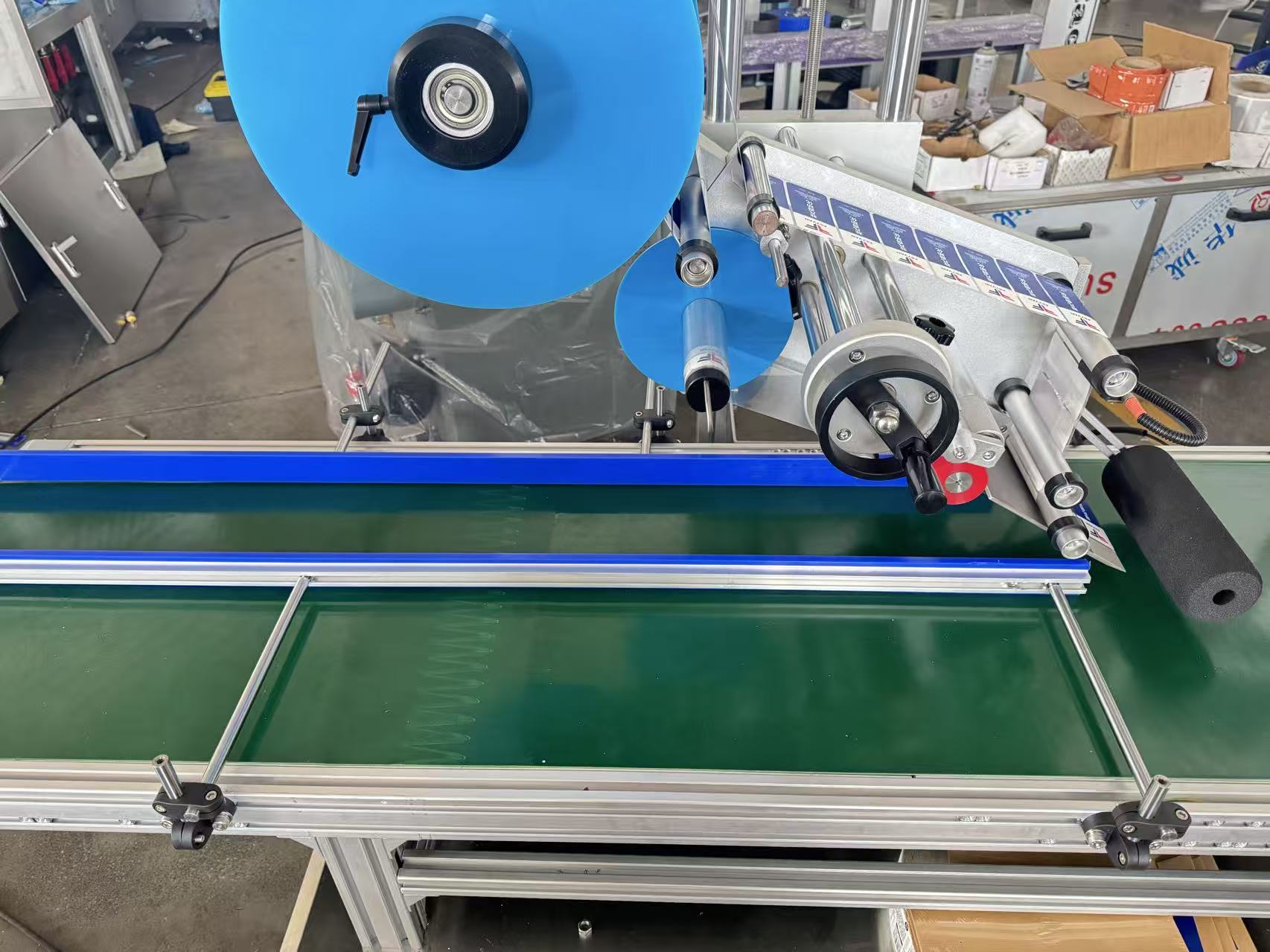

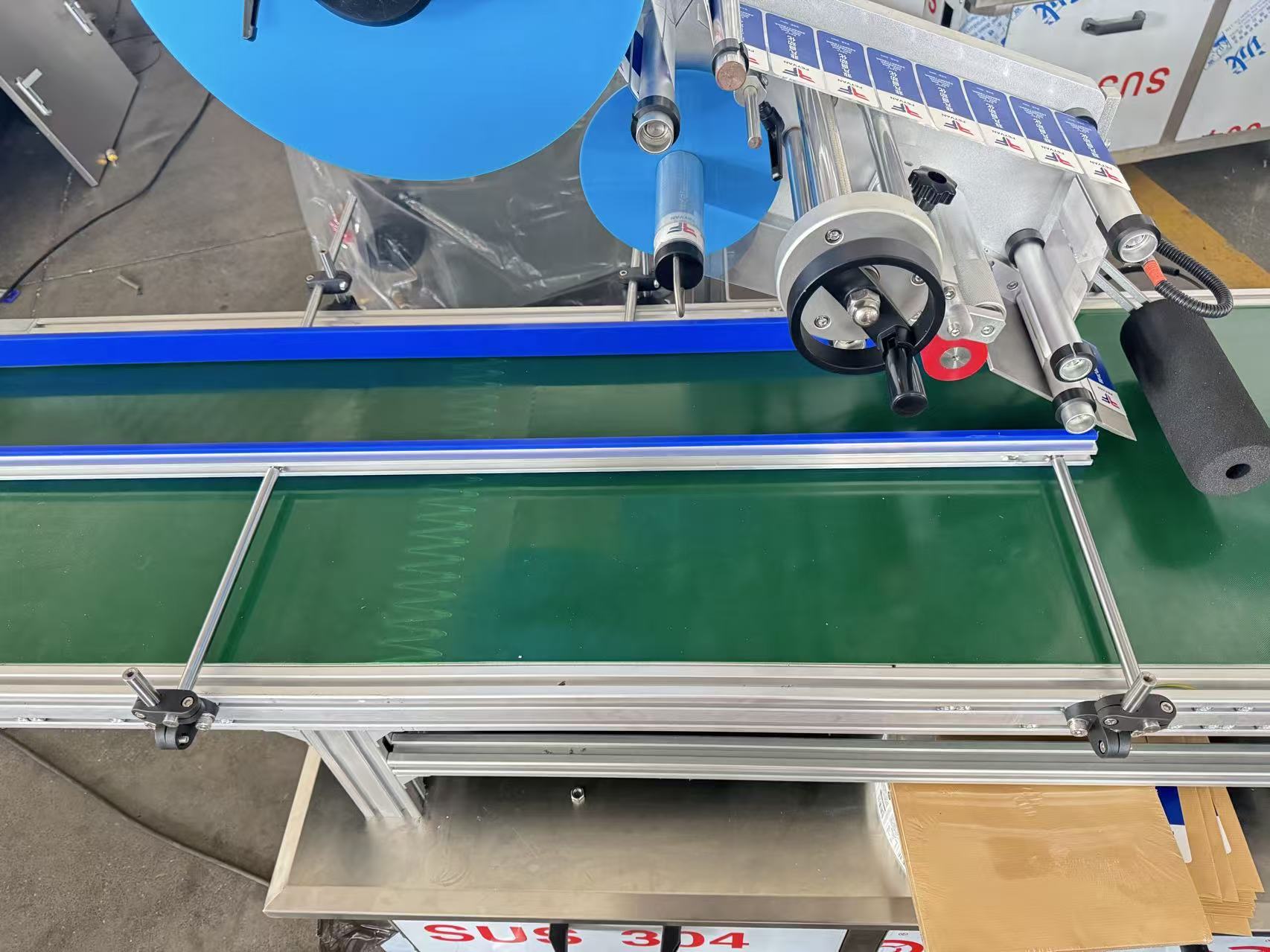

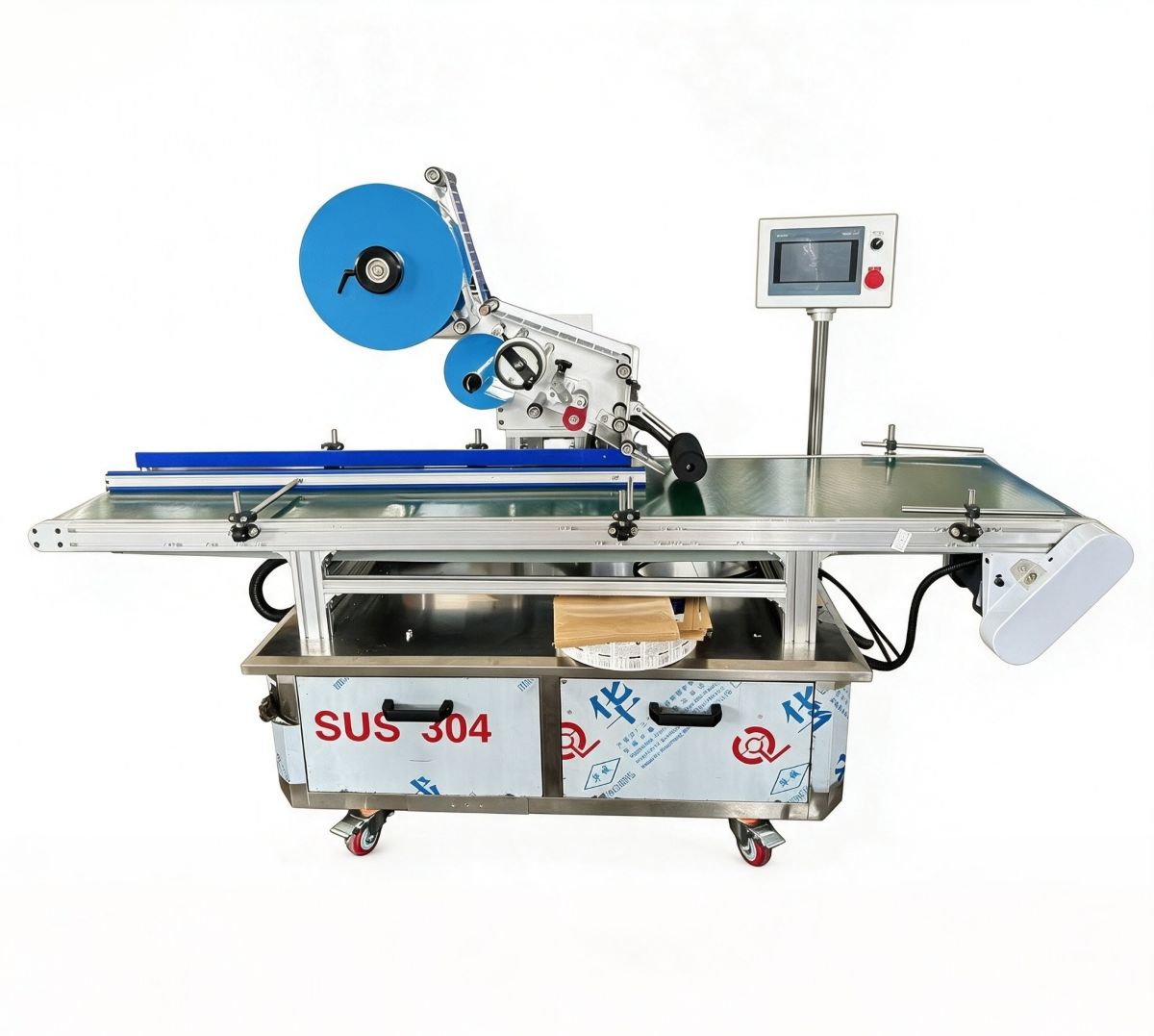

Feyvan automatic flat surface labeling machine is a flexible and high-precision flat labeling machine designed for applying self-adhesive labels on a wide range of flat products, including envelopes, plastic bags, cartons, shrink film packages, paper products and other flat packaging materials.
As a professional flat surface labeling machine manufacturer, Feyvan provides customized labeling solutions according to different product sizes, thicknesses and production requirements.
This automatic flat label applicator is especially suitable for customers who need a reliable labeling system for non-standard flat products with different shapes and thicknesses.
Unlike standard flat labeling machines, this model is a customized automatic flat surface label applicator developed according to the customer's actual application.
The machine can be specially designed for:

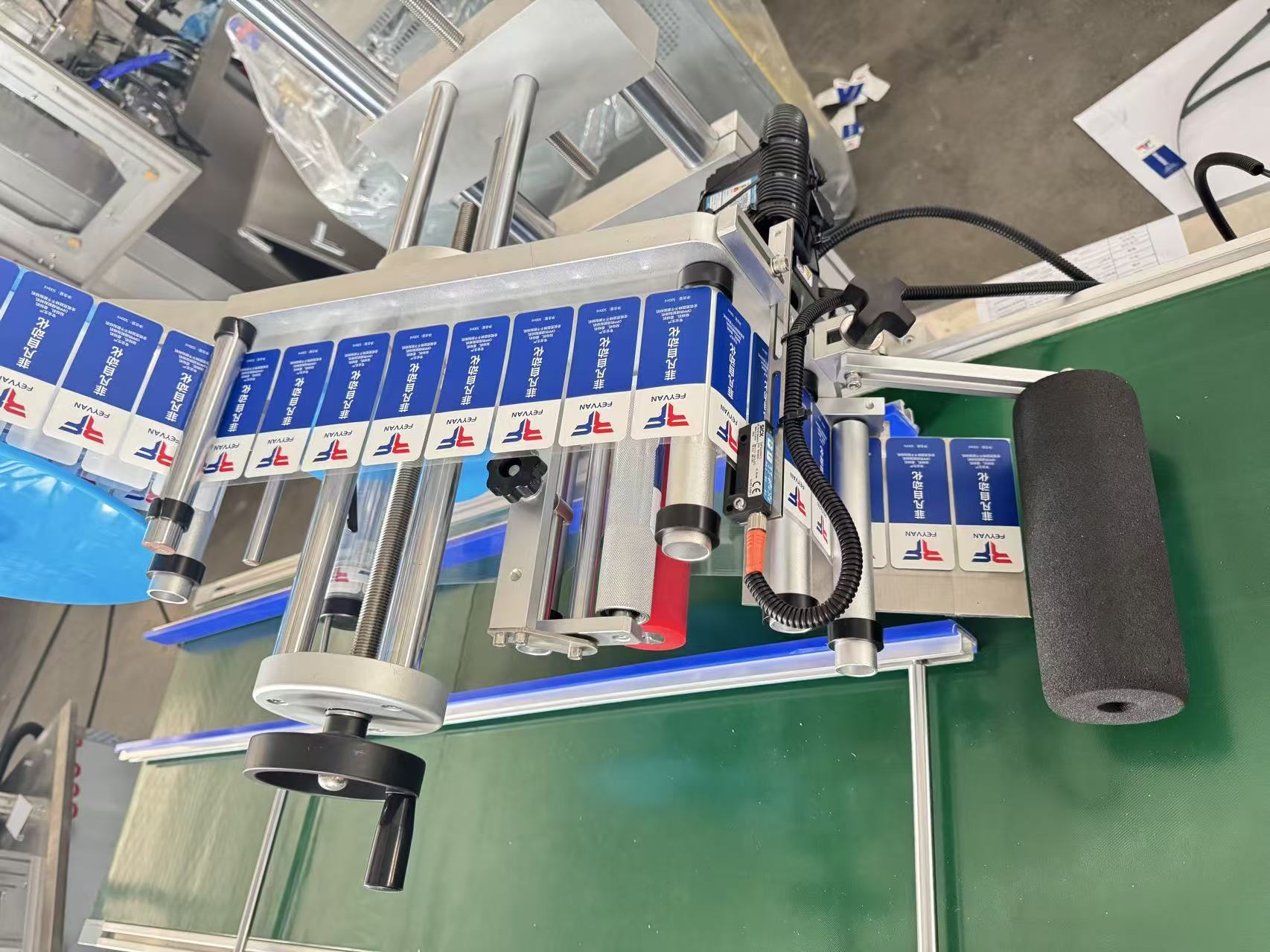

Envelope labeling
Plastic bag labeling
Carton box labeling
Shrink film packaging labeling
Paper product labeling
Flat plastic product labeling
The conveyor system, labeling head position and product handling structure can be customized to ensure stable feeding and accurate label application.
| Item | Specification |
|---|---|
| Machine Type | Automatic Flat Surface Labeling Machine |
| Label Type | Self-adhesive label |
| Labeling Speed | 0.1-45 m/min |
| Labeling Accuracy | ±1 mm |
| Label Width | 15-130 mm |
| Maximum Label Length | 350 mm |
| Label Roll Inner Diameter | Ø152 mm |
| Maximum Label Roll Diameter | Ø500 mm |

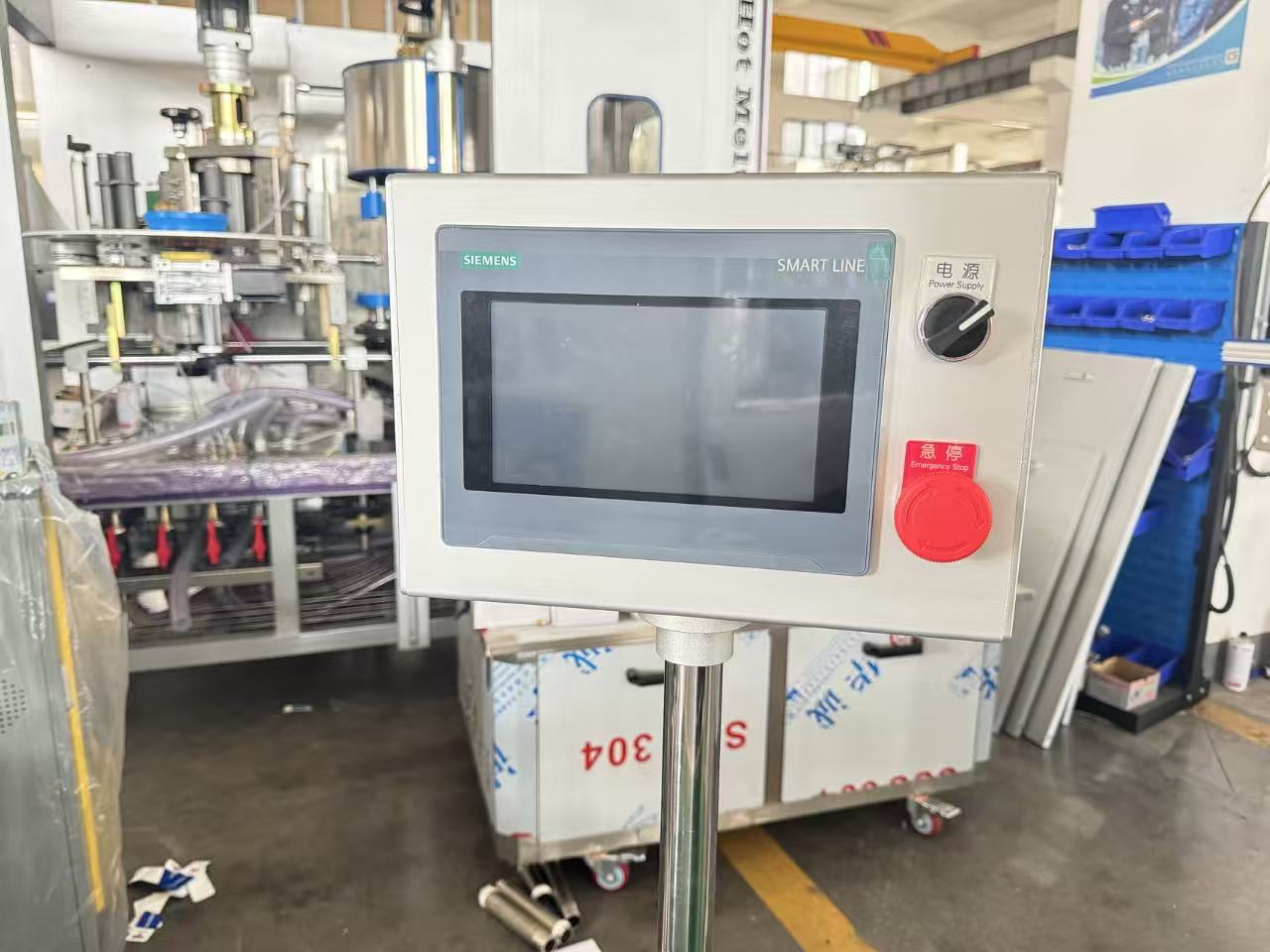

| Control System | Siemens PLC |
| Sensor Brand | SICK Germany |
| Servo System | Panasonic |
| Product Thickness | Customized |
| Conveyor System | Customized |
