This vertical palletizer is widely used in industries such as food & beverage, bottled water, chemicals, pharmaceuticals and logistics warehouses. It supports flexible palletizing patterns and can be customized according to different product sizes, pallet types and production capacities. As a professional palletizer manufacturer and supplier, we provide column palletizing machines suitable for markets in India, Southeast Asia, the Middle East, Africa and Europe. The system offers low maintenance cost, reliable performance and long service life, making it an ideal choice for automated production lines seeking higher efficiency and reduced labor costs.
Feyvan
6300mm*5100mm*2900mm
5T
China
304 stainless steel
beverages,pharmaceutical
20pack/min
One Year and Life-long Technical Support

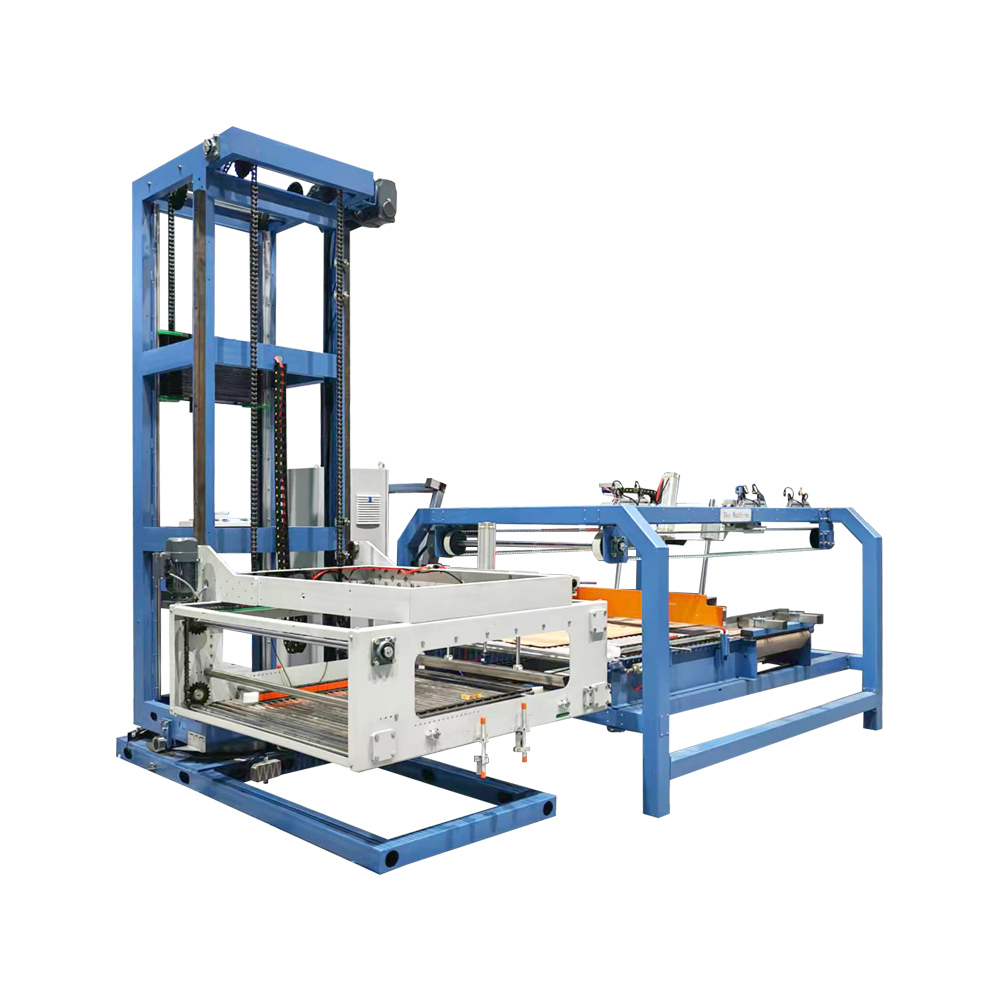

The Column Type Robotic Palletizer is a compact, cost-effective and automatic palletizing solution specially designed for small and medium-sized enterprises seeking automation upgrades, labor replacement, and efficient production line automation. Compared with traditional industrial robotic palletizers, the column type palletizer features a smaller footprint, simpler structure, and lower investment cost, while delivering high-performance palletizing, flexible palletizing patterns, and reliable operation.
This palletizing machine adopts a full servo drive system, ensuring smooth motion, high positioning accuracy, and long-term stability. With fewer mechanical components, low energy consumption, and minimal maintenance requirements, it offers an excellent balance between production efficiency, equipment quality, and overall cost. The machine is widely used for palletizing cartons, bags, bottles, boxes, drums, and other packaged products, making it ideal for factories with moderate production capacity and limited workshop space.

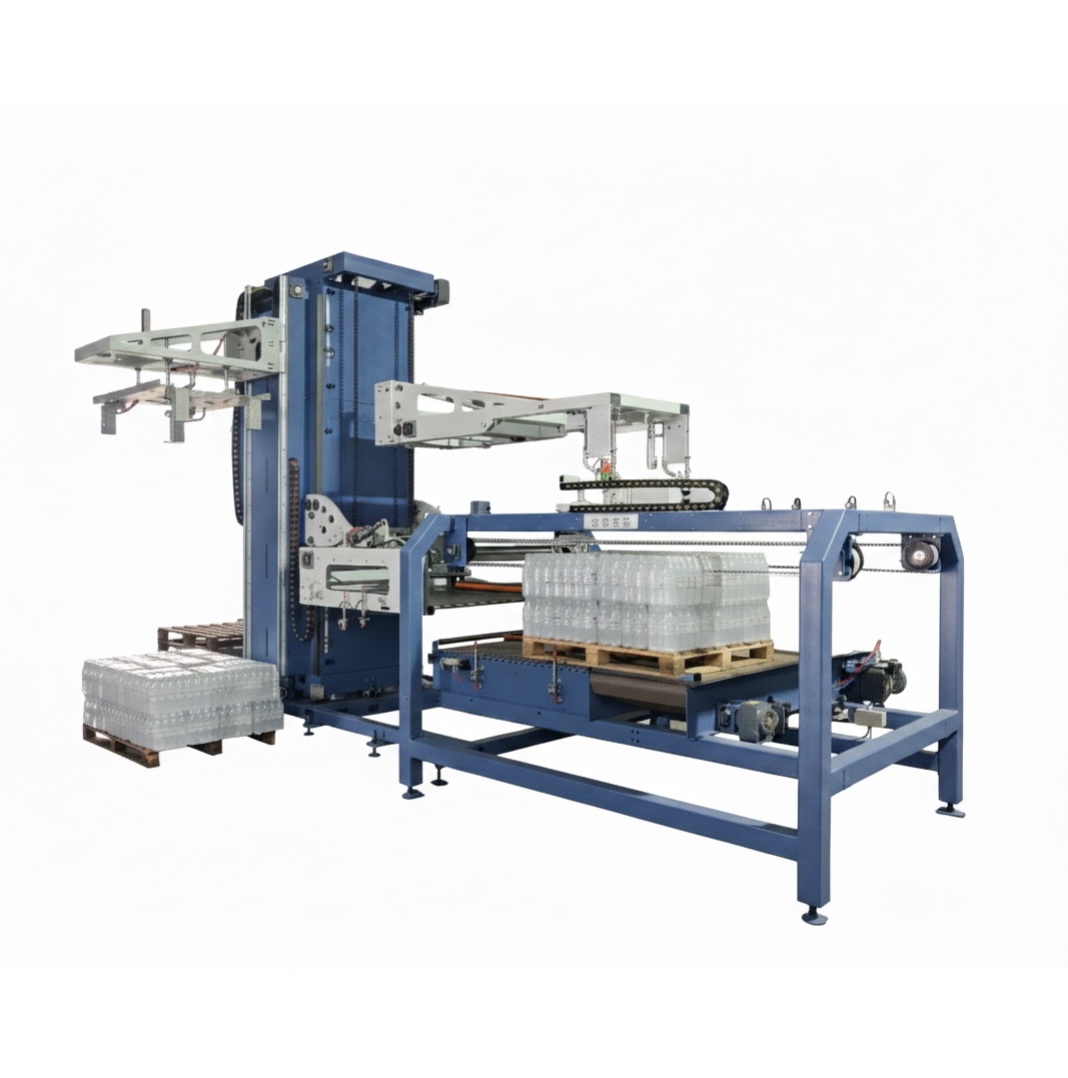

The working process of the column robotic palletizer is fully automated and highly efficient. Packaged products are first conveyed to the designated palletizing position through an infeed conveyor system. Once the product reaches the positioning area, sensors send a signal to the robot control system. The column robot coordinates the X, Y, and Z axes via servo motors. The gripper or end-effector moves directly above the product, and the Z-axis lowers to the preset gripping height. The end-effector then clamps or picks up the product securely. After lifting the product to a safe height, the robot transfers it to the palletizing area according to the preset palletizing program. The Z-axis descends again to place the product accurately at the target position. Once released, the robot repeats the cycle until the entire pallet is completed. A buzzer alerts operators when palletizing is finished. The filled pallet is removed by forklift, a new pallet is placed, and the system resumes operation automatically.
Compact vertical column robotic structure with small footprint, ideal for limited factory space
Full servo-driven palletizer system for smooth movement and high positioning accuracy
Flexible palletizing patterns with adjustable layers, stacking layouts, and programmable sequences
Low energy consumption, low failure rate, and minimal maintenance costs
Simple operation via teach pendant with preset and expandable palletizing programs
Supports single gripper, dual gripper, and customizable end-effectors
Compatible with gripping, clamping, and vacuum suction tools
Stable pallet stacks that do not collapse, ensuring safe storage and transportation
Item | Specification |
Frame | SS41 (A3 carbon steel, painted surface) |
Shaft | S45C bearing steel |
Roller | Stainless steel roller |
Machine Cover | SS41 (A3 carbon steel, painted surface) |
Guide Plate | SUS304 stainless steel |
Power Supply | 380V / 220V AC, 50Hz |
Total Power | 5.5 kW |
Working Air Pressure | 0.5 – 0.8 MPa |
Air Consumption | Clamping: 0.15 m³/min; Vacuum suction: 0.25 m³/min |
Palletizing Size | Max. pallet size: 1200 × 1200 × 1600 mm (customizable) |
Production Capacity | Fully automatic mode: ≤ 20 cartons/min |
Total Machine Weight | Approx. 5 T |
Machine Dimensions (L × W × H) | 6300 × 5100 × 2900 mm (height customizable) |
The column type robotic palletizer is widely applied in industrial automation and various industries, including:
Feed and pet food production
Fertilizer and chemical industry
Grain, rice, and flour processing
Food and beverage manufacturing
Bottled water and liquid packaging
Logistics and warehouse distribution
It is suitable for palletizing cartons, bags, boxes, bottles, cans, drums, and other packaged products.
Feyvan is a professional automation equipment manufacturer and supplier specializing in robotic palletizing solutions. With years of industry experience, we provide reliable, practical, and cost-effective automatic palletizing machines for global customers.
Customized solutions tailored to customer products, factory layouts, and production line needs
Strict quality control and premium industrial components
Competitive pricing for small and medium-sized enterprises seeking automation upgrades
Professional technical support before and after sales
Successful installations in India, Southeast Asia, the Middle East, Africa, and Europe
Choosing Feyvan ensures higher production efficiency, reduced labor costs, and long-term operational reliability.

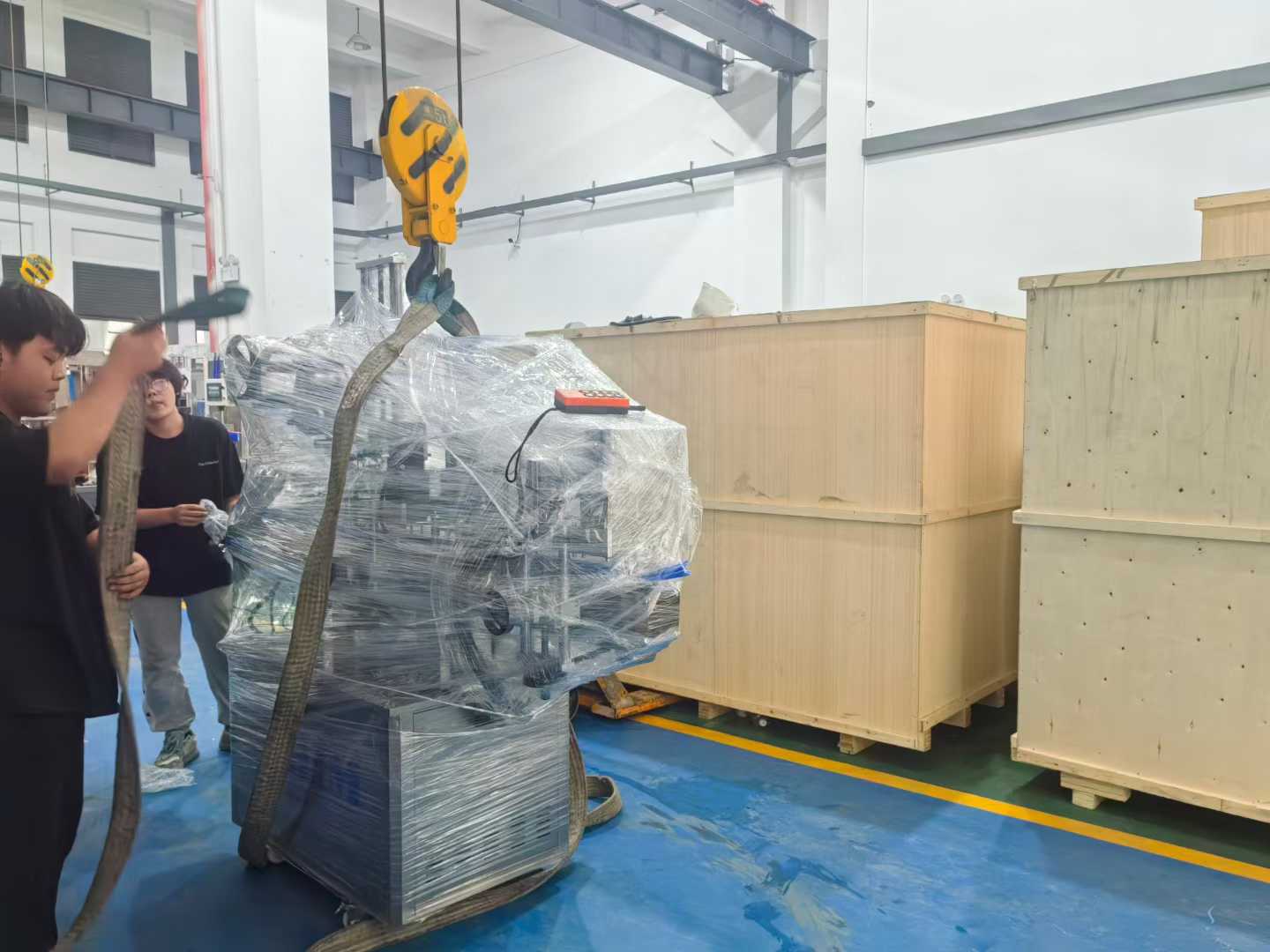

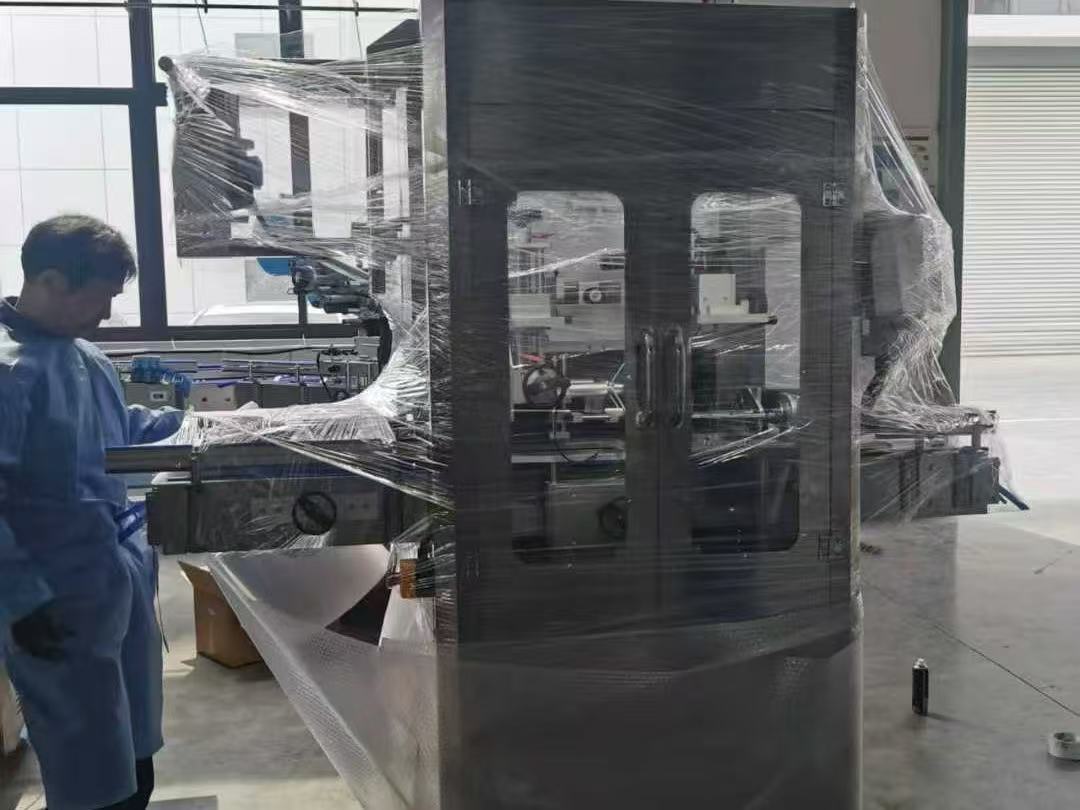

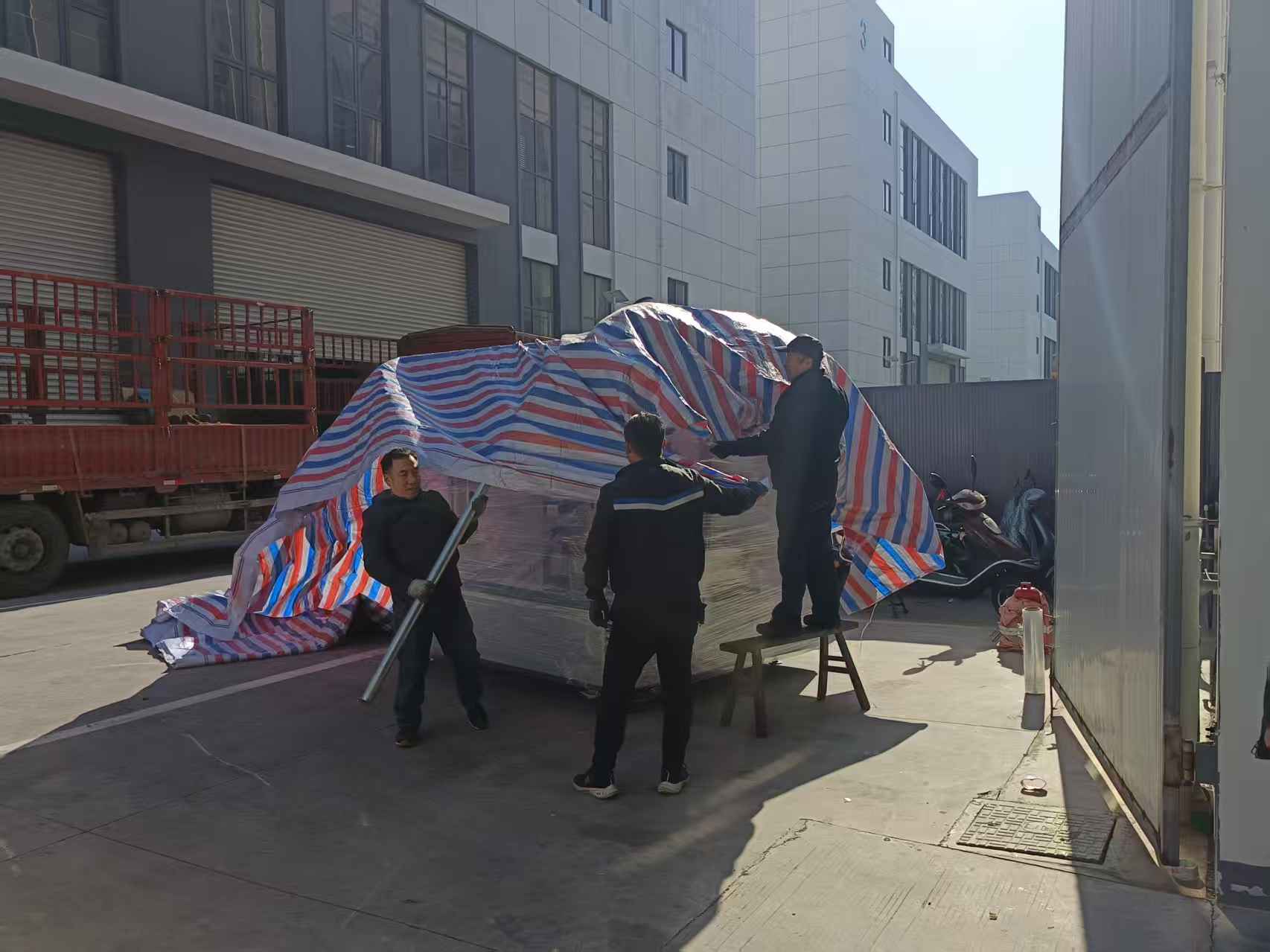

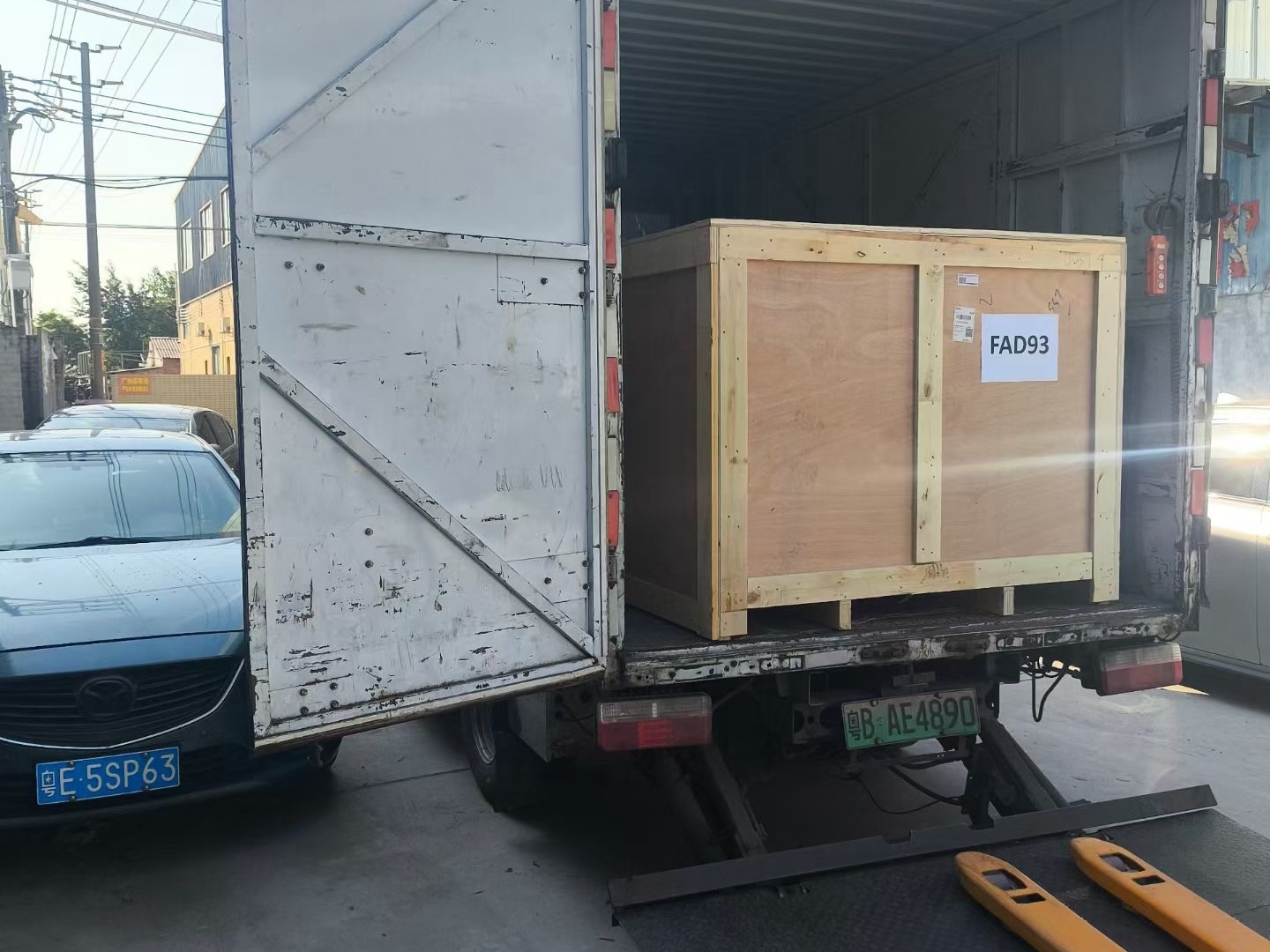

All labeling machines are packed in high-quality export wooden cases for safe overseas transportation. Before shipment, the machine is protected with anti-rust and moisture-proof materials, and securely fixed inside the wooden case to prevent damage during long-distance shipping. This packaging is suitable for container and LCL shipment, ensuring the labeling machine arrives safely and ready for installation.
Professional advice based on your product type, package size, film material and production capacity.
Machine configuration tailored to bottles, cans or cartons, compatible with PE or POF shrink film.
Each machine is fully assembled and tested to ensure stable operation and consistent shrink quality.
Remote or on-site installation guidance to ensure smooth setup and fast production start-up.
Clear operation instructions and training to help your team quickly master machine operation and daily maintenance.
Prompt technical assistance to solve operation or adjustment issues during production.
Long-term supply of original spare parts to ensure reliable and continuous operation.
Dedicated support throughout the machine’s lifecycle for stable performance and peace of mind.
The column robotic palletizer can handle cartons, bags, bottles, boxes, drums, and various other packaged products, supporting flexible palletizing patterns.
Yes. Palletizing patterns, stacking layers, and layouts can be freely programmed and adjusted via the teach pendant control.
Absolutely. Its compact design, low investment cost, and space-saving structure make it ideal for small and medium-sized production facilities.
The machine features a simple structure with fewer components, resulting in low maintenance, low operating costs, and high reliability.
Yes. The palletizer supports gripping, clamping, and vacuum suction end-effectors, depending on the product type and packaging.
Industries including food and beverage, logistics, chemicals, fertilizer, grain processing, and bottled water can greatly improve production line efficiency using this machine.
Yes, the column type robotic palletizer provides fully automated palletizing, integration with conveyors, and programmable industrial automation solutions.
Yes. The servo-driven system and minimal mechanical components ensure low power consumption while maintaining high productivity.
Yes. The system can be customized for various pallet sizes and stacking layouts to meet different production requirements.
