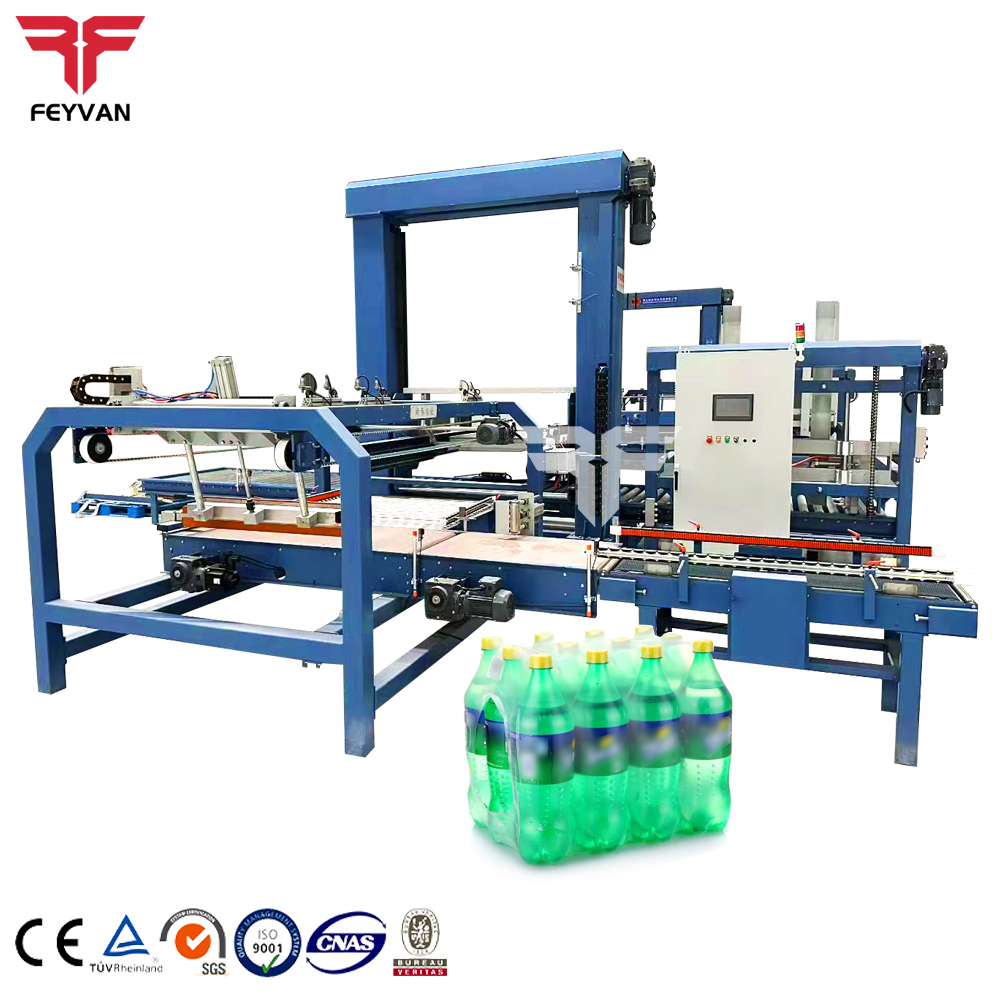

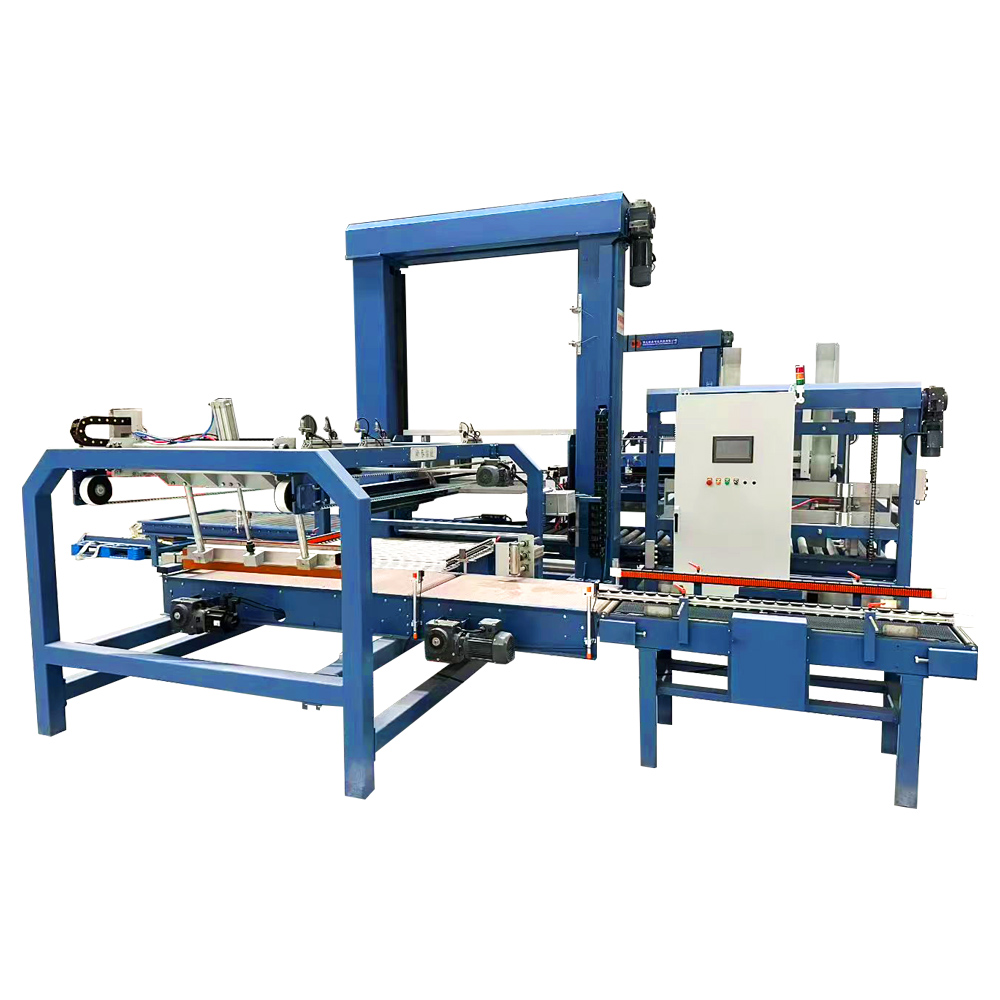

Feyvan Automatic Gantry Palletizer Machine delivers precise, heavy-duty palletizing of cartons, bags, bottles, and containers for efficient industrial packaging lines.
Feyvan
(L)8000MM×(W)6000MM×(H)3600MM
7500KG
China
304 stainless steel
Food & Beverage,Chemical & Building Materials,Pharmaceutical & Daily Chemical
Up to 50 cases per minute
One Year and Life-long Technical Support

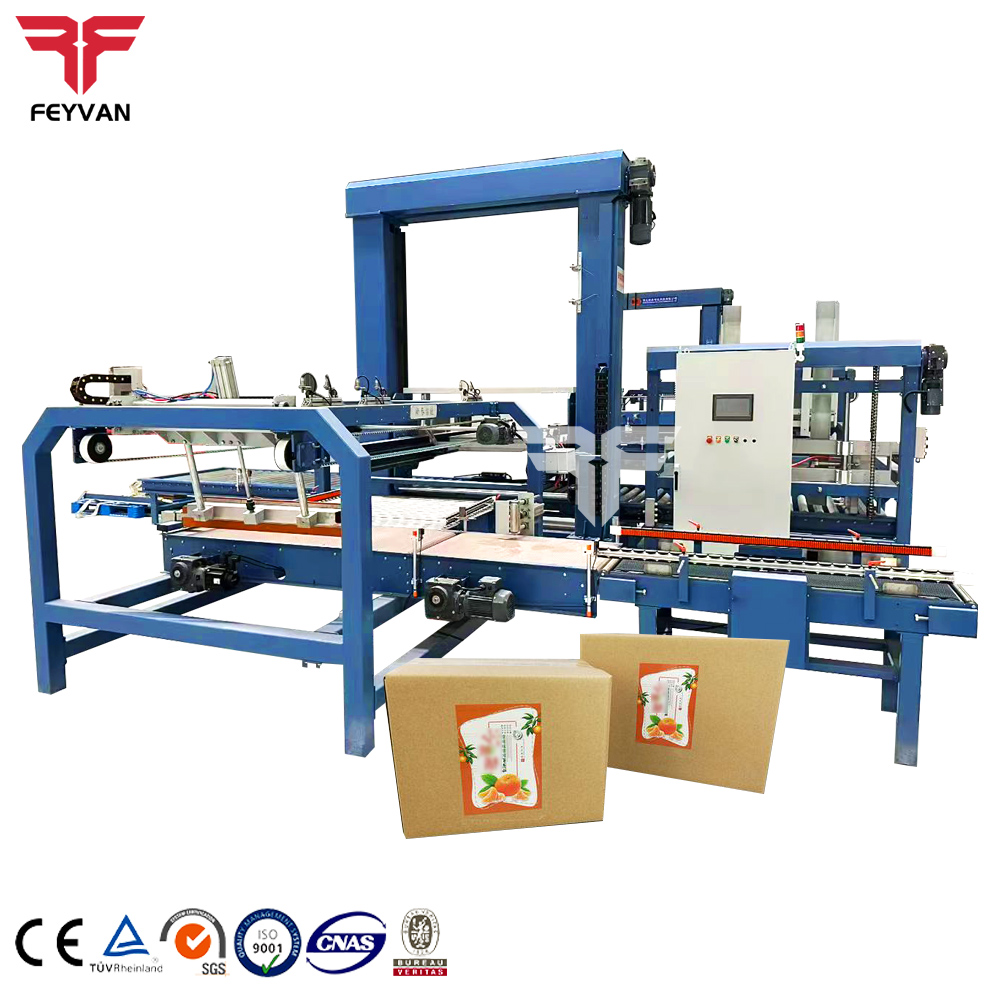

Feyvan Automatic Gantry Palletizer is a high-performance end-of-line palletizing system designed to automatically stack cartons, bags, bottles, and containers with exceptional precision and reliability. Built with a rigid overhead gantry structure and servo-controlled multi-axis motion, it provides unmatched stability, heavy load capacity, and long-term operational durability.
Engineered for modern industrial production lines, this advanced gantry palletizing solution helps manufacturers reduce labor costs, increase productivity, and achieve consistent pallet stacking quality.
An automatic gantry palletizer is a fully automated machine that stacks products onto pallets using a linear motion system with X, Y, and Z axes. It is widely used in manufacturing industries for high-speed, heavy-duty palletizing applications.
Feyvan gantry palletizers provide stable operation, compact footprint, and cost-effective automation, making them ideal for modern packaging lines.
Many manufacturers still rely on manual palletizing, which leads to:
High labor costs
Workplace injury risks
Inconsistent stacking quality
Low production efficiency
Limited scalability
Feyvan Automatic Gantry Palletizer eliminates these challenges by delivering fully automated, reliable palletizing performance.
The rigid steel gantry frame ensures precise and vibration-free palletizing even under heavy loads.
Gantry palletizers provide similar productivity with significantly lower initial costs and maintenance expenses.
Advanced servo motion control ensures accurate placement, reducing product damage and improving pallet stability.
Overhead motion design allows efficient use of floor space without large safety zones.
Simple mechanical structure ensures long-term reliability and reduced downtime.
Ensures smooth, precise, and synchronized movements across all palletizing axes.
Supports handling of:
Cartons and boxes
Bags and sacks
Bottles and containers
Buckets and pails
Shrink-wrapped bundles
Provides real-time monitoring, easy programming, remote diagnostics, and operational control.
Compatible with pallet dispensers, conveyors, slip sheet systems, and wrapping machines.
Typical benefits include:
Up to 70% reduction in labor costs
Increased palletizing speed by 3–5 times
Improved workplace safety
Reduced product damage rates
Continuous 24/7 production capability
Most customers achieve ROI within 12–18 months.
Cartons, bottled drinks, snack packaging.

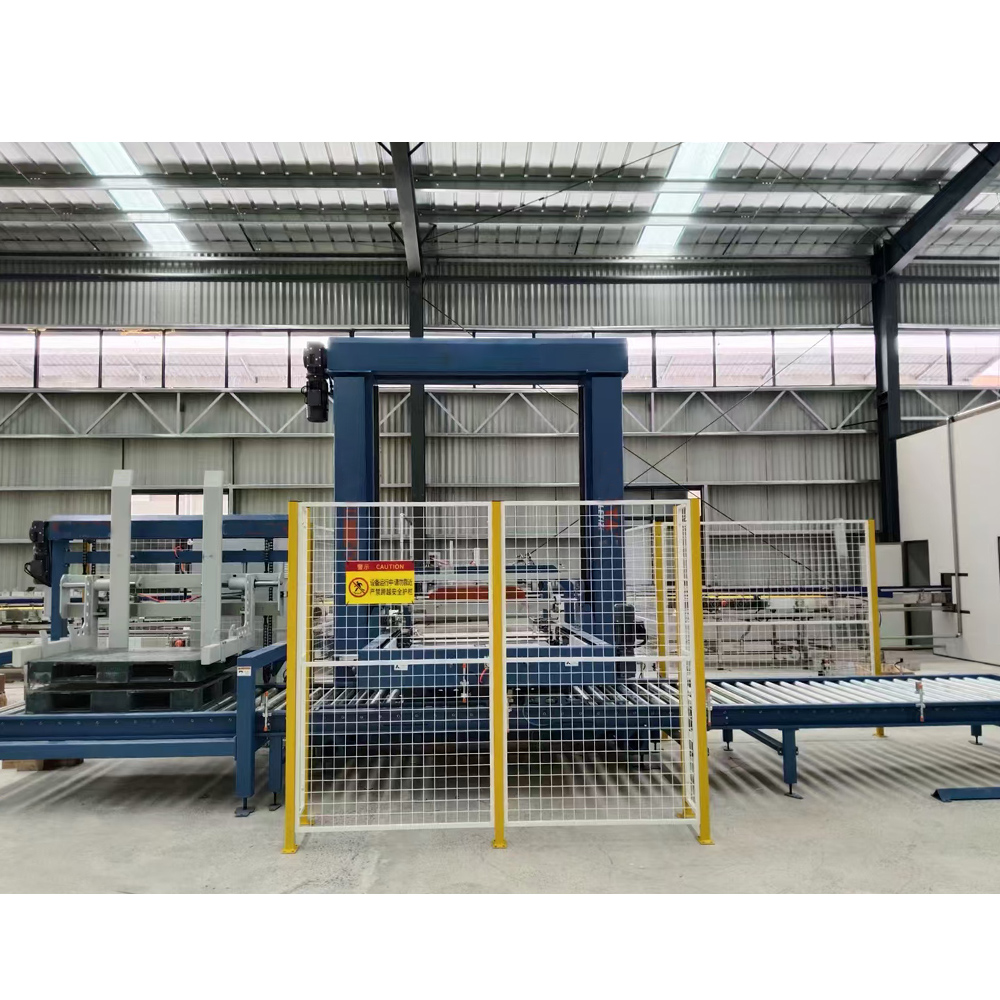

Heavy sacks, powder packaging, bulk materials.
Retail cartons, household products.

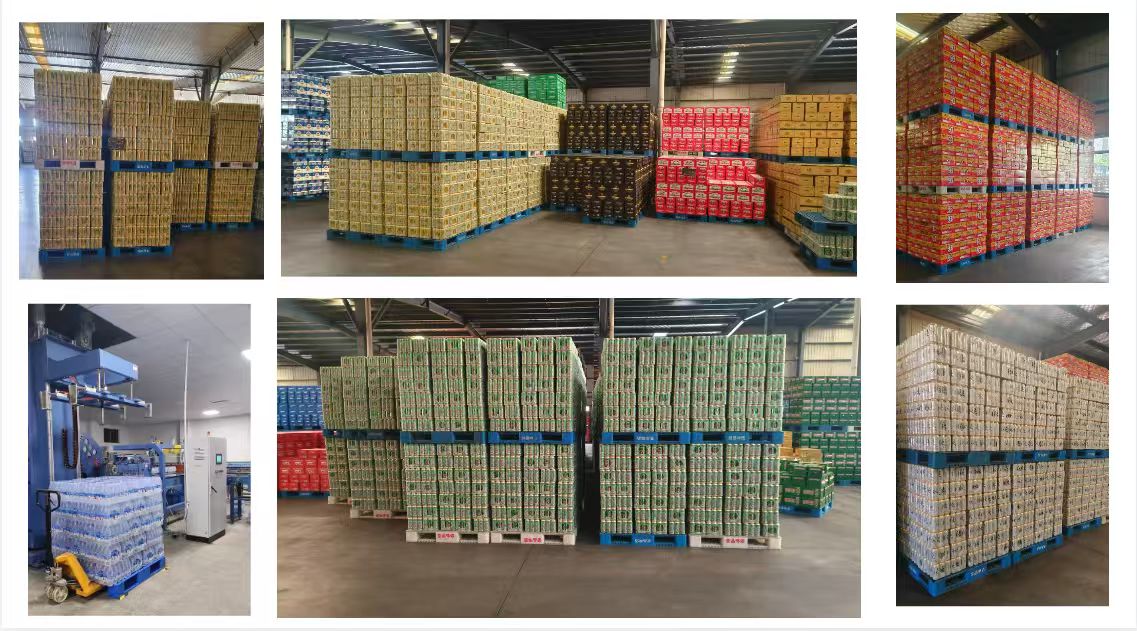

Automated pallet stacking for distribution.
| Feature | Gantry Palletizer | Robot Palletier |
Stability | Very High | Medium |
Load Capacity | Heavy Duty | Moderate |
Maintenance | Low | Higher |
Cost | Lower | Higher |
Flexibility | Moderate | High |
For heavy and repetitive palletizing tasks, gantry systems are the most economical solution.
Automatic Gantry Palletizer.pdf
| Parameter | Specification |
|---|---|
| Standard Capacity | ≤50 boxes/min* Note: palletizing speed depends on pallet size, box width, box size, and stacking pattern |
| Operation Mode | Human-Machine Interface (HMI) |
| Max Load per Layer | 260 kg |
| Max Load per Pallet | 1600 kg |
| Max Stacking Height | 1750 mm (including pallet) |
| Motor / Power Supply | Three-phase five-wire, AC 380V / 50Hz, 10 kW |
| Control Voltage | DC 24V |
| Air Consumption | 500 NL/min (Air pressure: 6–8 kg/cm²) |
| Air Pipe Connection | φ10 mm |
| Machine Dimensions (L×W×H) | 8000 × 6000 × 3600 mm |
| Environmental Conditions | Altitude: 3–2000 m Temperature: 0–40℃ Humidity: 40–95% |
| Machine Weight | 7500 kg |
Palletizing Speed: Up to 1500 units/hour
Payload Capacity: Up to 200 kg
Stacking Height: Up to 2000 mm
Control System: PLC + Touchscreen HMI
Power Supply: 220V / 380V
Frame Structure: Heavy-duty industrial steel
Customization is available based on production requirements.
Years of expertise in industrial automation and palletizing systems.
Tailored systems based on production layout and packaging type.
High-quality international servo and control systems.
Professional on-site commissioning and training services.
Remote support, spare parts supply, and long-term maintenance.
IoT-enabled monitoring
AI pallet pattern optimization
Predictive maintenance systems
Smart factory connectivity
It provides superior stability and heavy load handling at lower cost compared to robotic palletizers.
Up to 1500 units per hour depending on application.
Yes, with customizable grippers and programmable stacking patterns.
Feyvan provides full installation, training, and commissioning services.
Whether you need a heavy-duty palletizing solution for cartons, bags, or industrial packaging, Feyvan Automatic Gantry Palletizer offers the perfect combination of stability, efficiency, and cost-effectiveness.
Contact Feyvan today to receive a customized palletizing solution tailored to your production needs.
