Feyvan
3048*1700*1800mm
200kg
China
304 stainless steel
beverages,pharmaceutical
3000~9000BPH
One Year and Life-long Technical Support

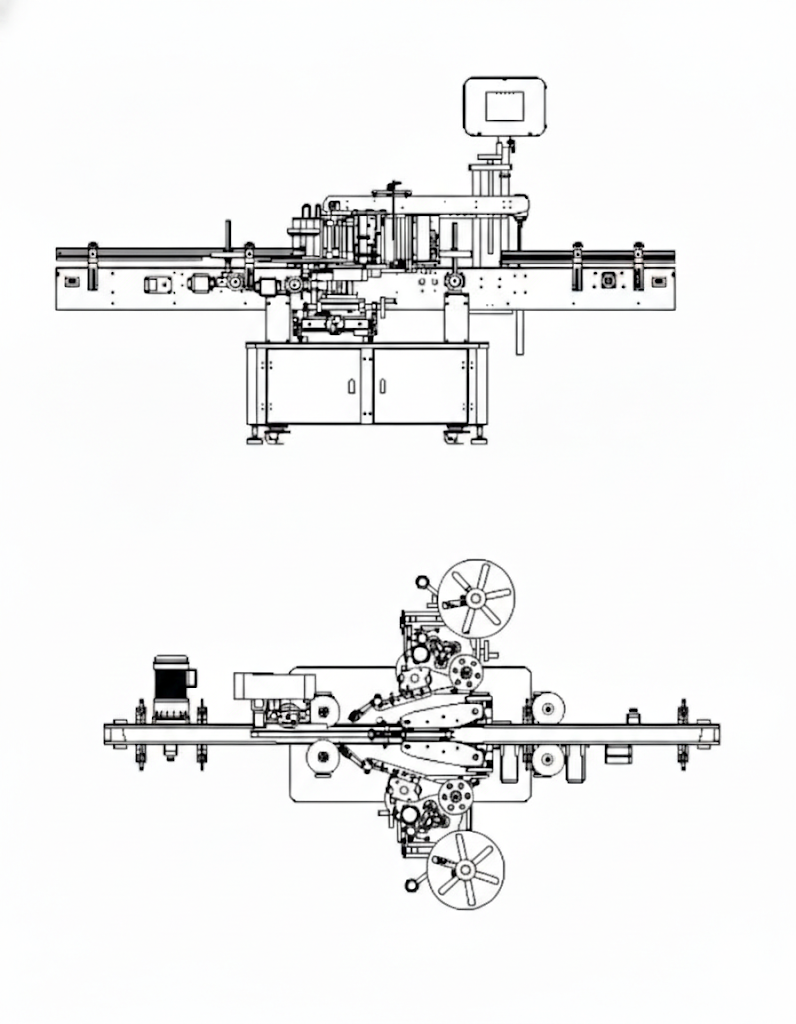

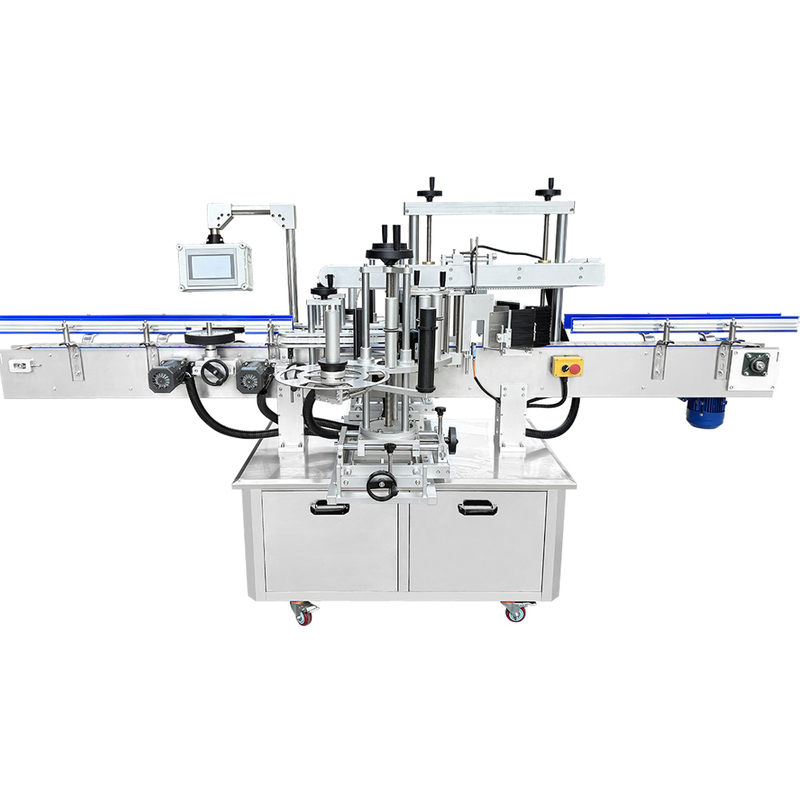

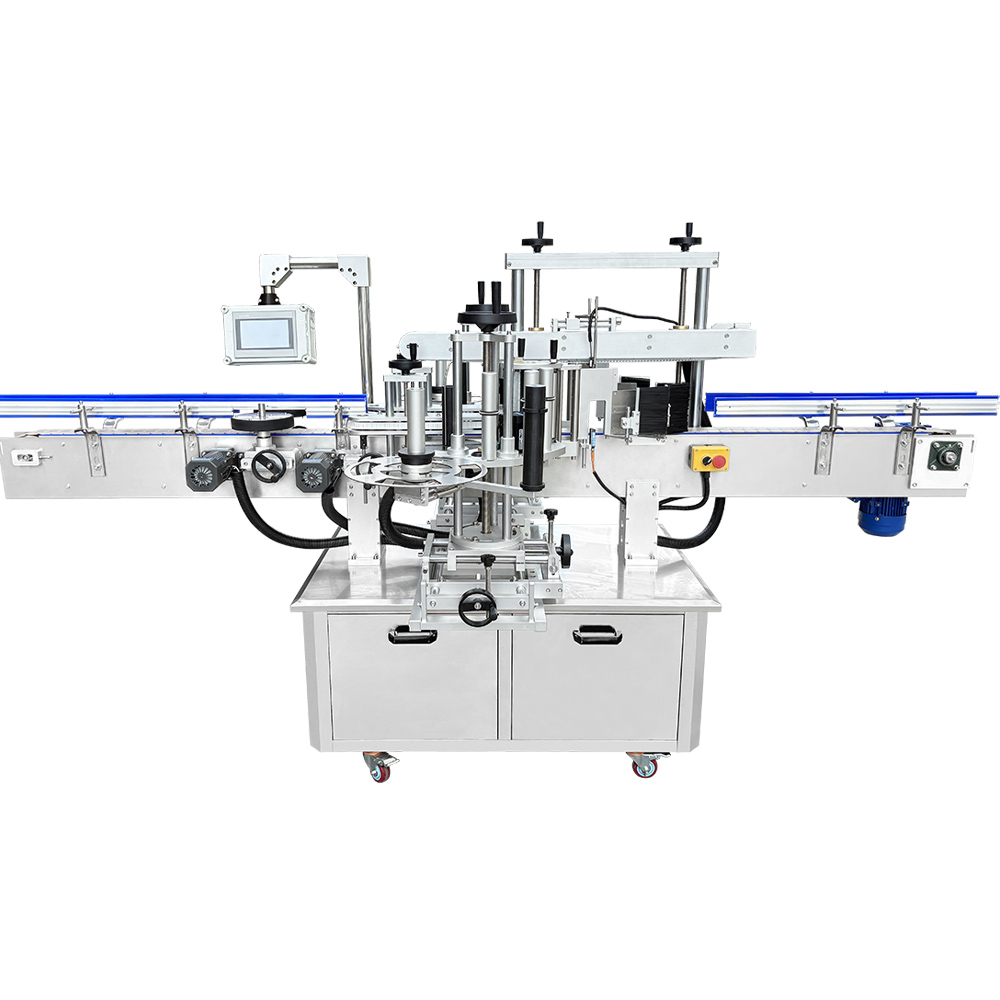

This Feyvan labeling machine is a high-performance fully automatic double-sided labeling machine engineered for precision and speed. This industrial-grade system is specifically designed for the symmetrical labeling of square or flat products. Constructed from high-grade stainless steel and aluminum alloy to meet GMP environment requirements, it ensures a rust-free, non-polluting operation ideal for the food, beverage, and pharmaceutial industries.

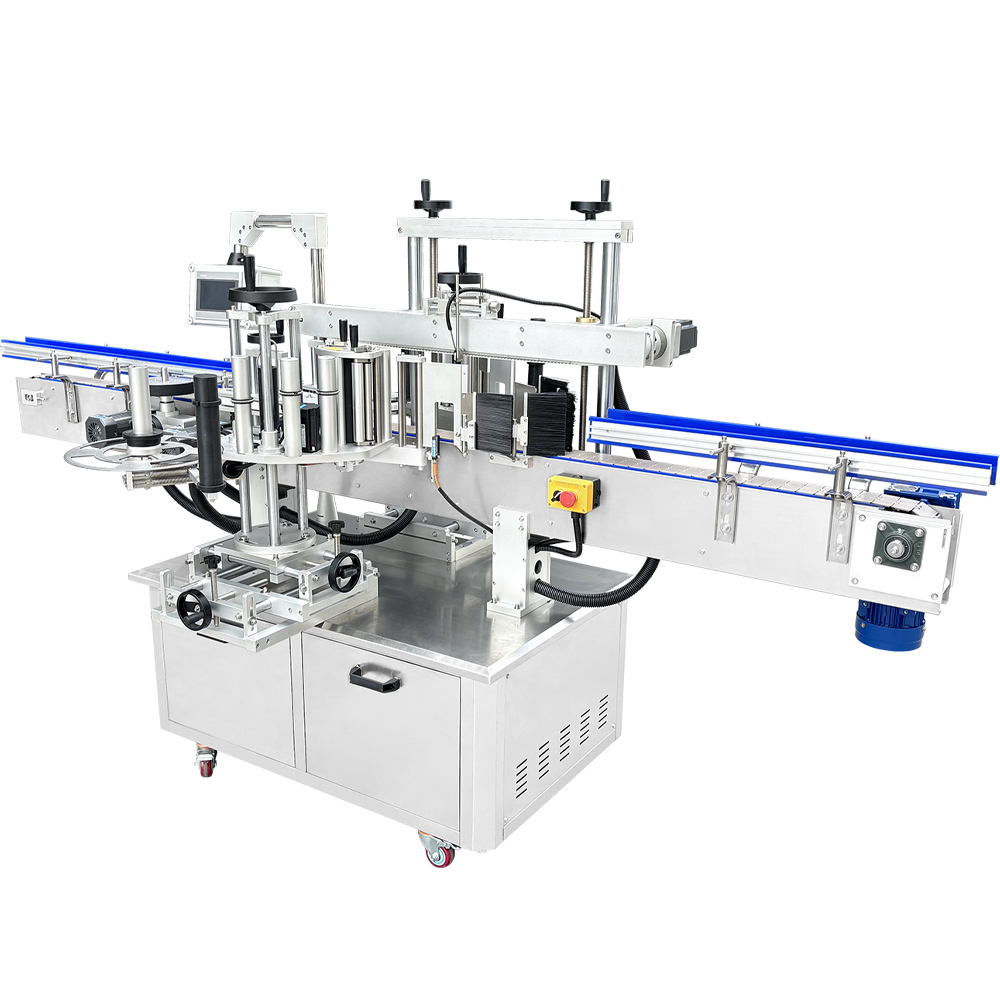

Designed for accurate front-and-back labeling on flat, square, and rectangular containers. Supports both single-side and double-side labeling with quick adjustment for different bottle sizes and shapes.

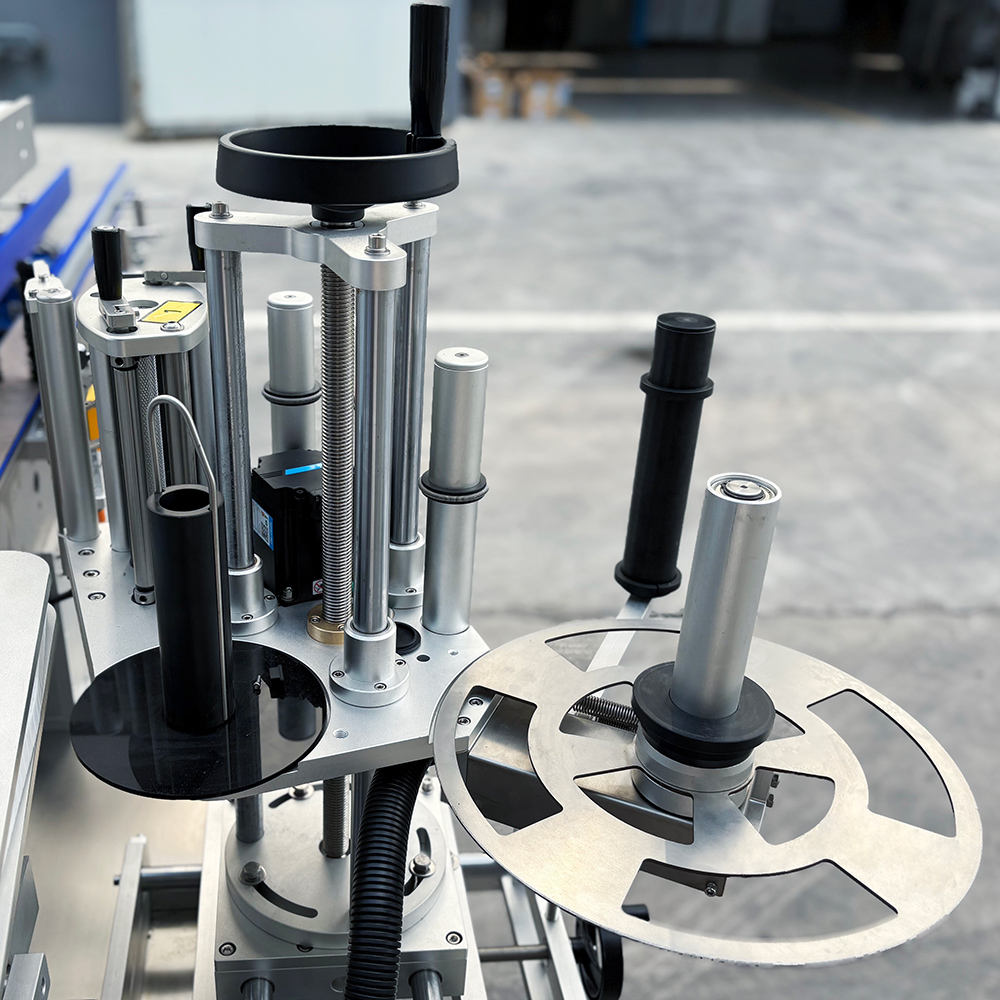

The labeling head features eight-dimensional adjustment, enabling fast and precise positioning. Changeover can be completed within minutes, reducing downtime and improving production efficiency.
A double-pressure roller system ensures stable label tension, effectively preventing wrinkles, air bubbles, and label breakage caused by backing paper damage.
Driven by high-performance Inovance (Huichuan) servo motors with absolute encoders, the labeling speed is automatically synchronized with the production line for smooth, high-speed, and precise operation.

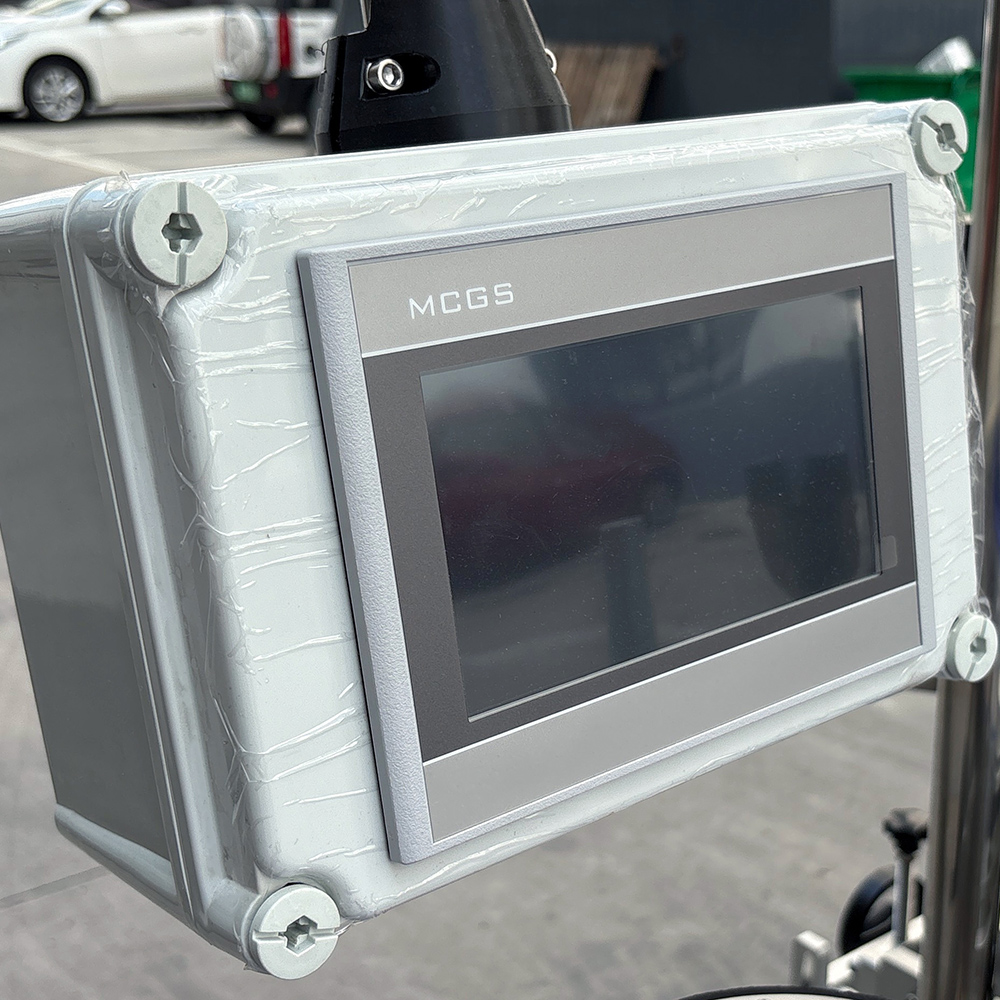

Integrated PLC control system with an intuitive color touchscreen. Operating parameters can be stored for different products, with real-time fault alarms and troubleshooting guidance for easy operation.
| Item | Specification |
|---|---|
| Producing Speed | Up to 10,000 bottles/hour |
| Labeling Accuracy | ±1 mm |
| Max. Label Width | 200 mm |
| Max. Label Length | 500 mm |
| Min. Bottle Thickness | 25 mm |
| Max. Bottle Thickness | 100 mm (customization required for larger sizes) |
| Min. Bottle Height | 30 mm |
| Max. Bottle Height | 350 mm (customization required for larger sizes) |
| Label Roll Inner Diameter | Ø 76 mm |
| Label Roll Outer Diameter | Ø 380 mm |
| Machine Dimensions (L × W × H) | 3048 × 1700 × 1800 mm |
| Power Supply | 220V / 50Hz |
| Power Consumption | 3000 W |
Feyvan’s automated systems are engineered to meet the high production standards of manufacturers in North America, Europe, and Southeast Asia.

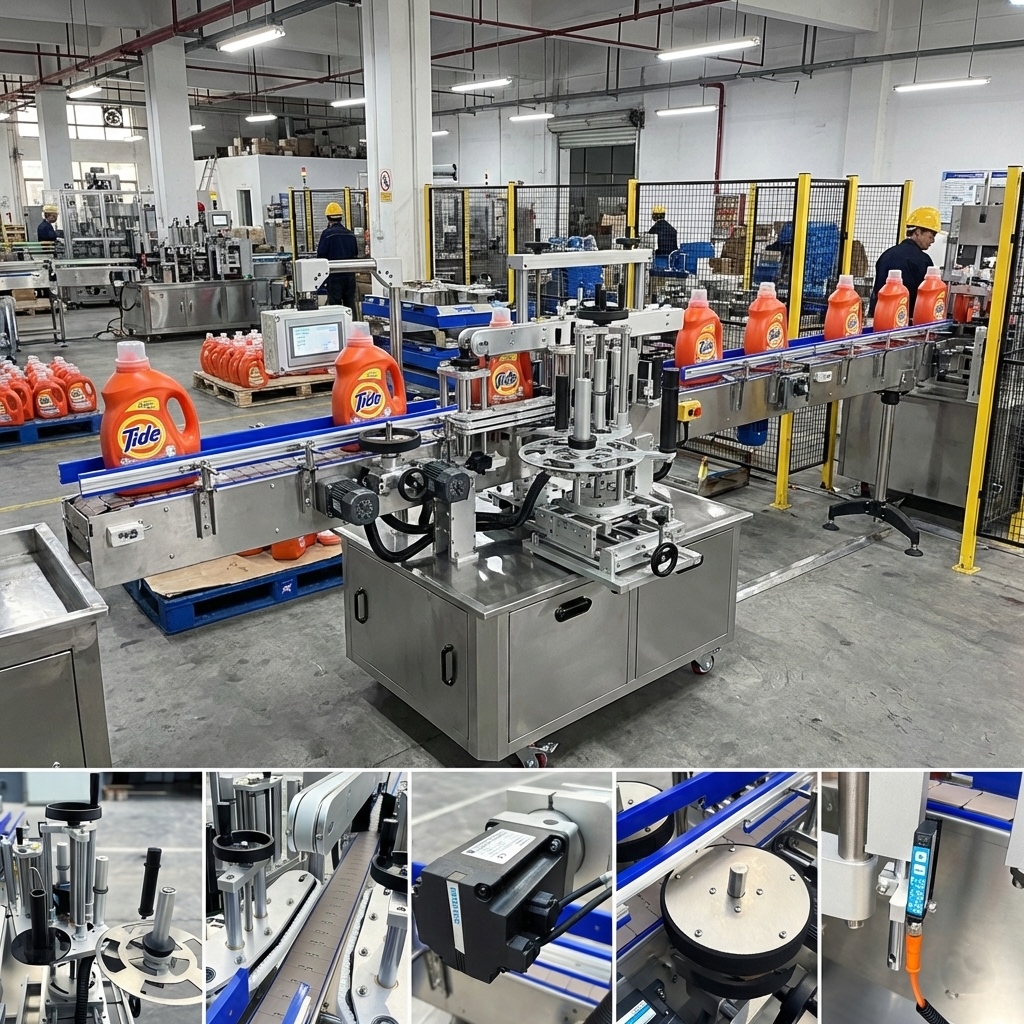

Products enter the system via manual loading or are seamlessly transferred from an upstream production line. Our heavy-duty slat chain conveyor ensures stable transport, a critical feature for high-capacity packaging facilities globally.

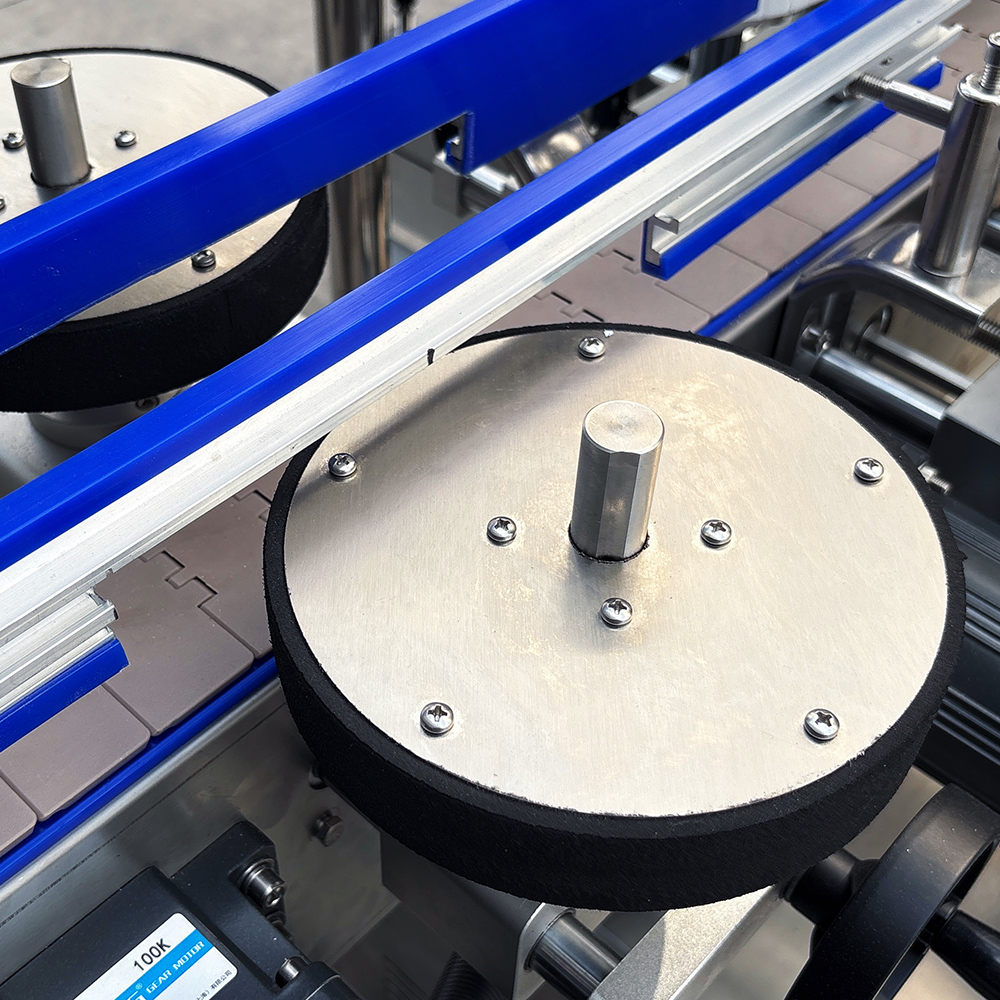

To prevent jamming in high-speed lines, an integrated separation device creates precise gaps between containers. This ensures a smooth flow for various bottle shapes, from cosmetic ovals to pharmaceutical flats.
Before labeling, an advanced rectifying mechanism corrects the orientation of each bottle. This step is essential for maintaining the ±1mm labeling accuracy that international quality standards demand.

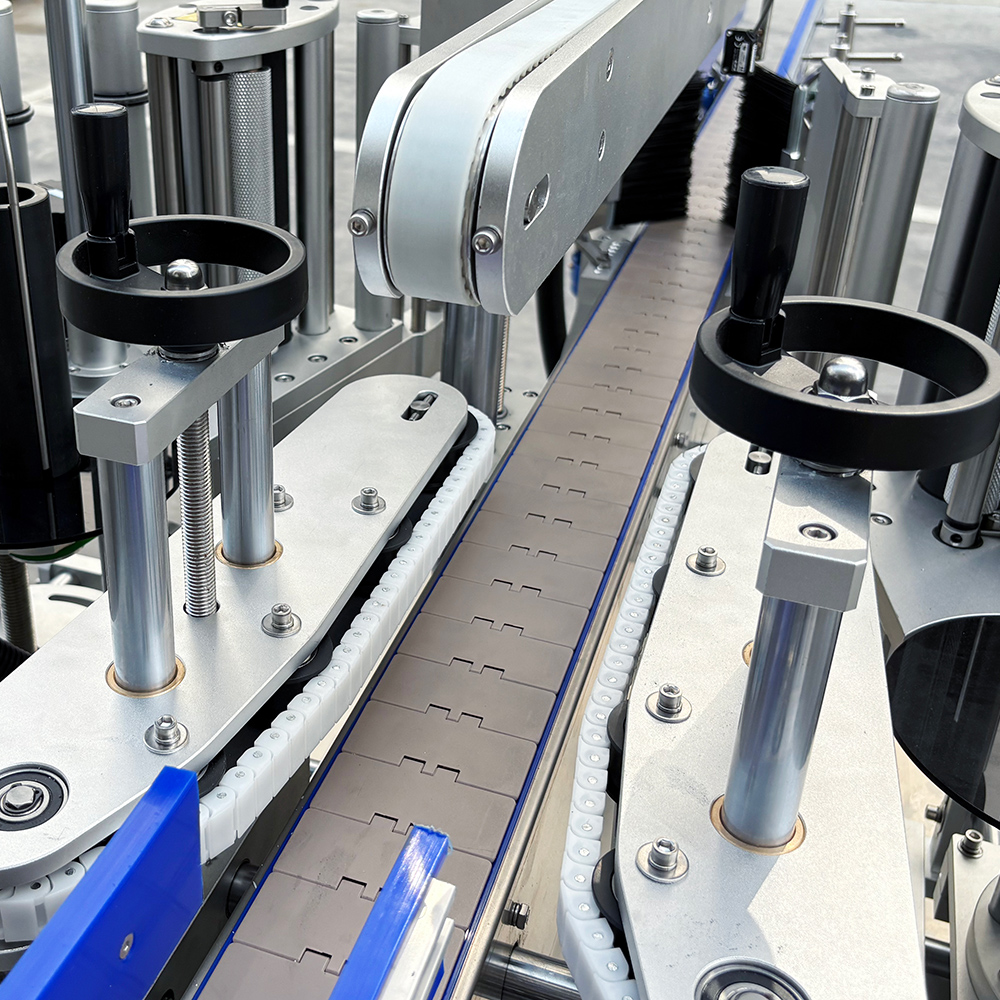

A synchronized top-hold-down belt secures the product from above. By eliminating vibration, Feyvan ensures that labeling remains consistent even at speeds of up to 150 bottles per minute.
High-precision industrial sensors (electric eyes) detect the product's position in real-time. Our systems use world-class components (like SICK or Omron) to ensure reliability for our clients in global markets.
Feyvan partners with global industry leaders to guarantee machine stability and easy global maintenance:
Siemens (Germany): High-reliability PLC controllers designed for fast processing and durability in harsh environments.
Schneider (France): Industrial-grade circuit breakers, contactors, and power systems for stable operation.
Inovance: High-performance servo drives for consistent speed and torque.
We offer personalized non-standard designs to meet your specific production needs:

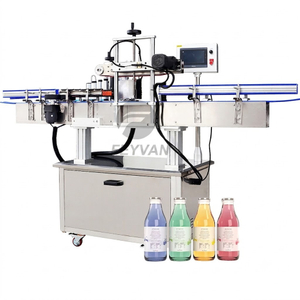

Round Bottle Mechanism: Optional attachment to enable 360-degree circumferential labeling.
Online Printing Integration: Add printers to apply production dates and batch numbers in real-time.
Vision Inspection: Optional CCD cameras for automatic detection and rejection of non-conforming products.
Feyvan provides comprehensive support to ensure your production line never stops:
One-Year Warranty: Free maintenance for one year with lifelong technical support.
On-Site Installation: Professional engineers provide on-site setup, commissioning, and staff training.
Prompt After-Sales: A dedicated team to record and respond to maintenance requests quickly.
Feyvan systems are specifically engineered for high-precision, symmetrical labeling of flat, square, and oval containers1. Optional mechanisms allow for 360° round bottle labeling on the same line2.
The machines achieve a consistent accuracy of ±1 mm. This is powered by SICK sensors and Inovance servo motors for true closed-loop control4.
A unique double-pressure roller structure maintains constant tension5. This eliminates surface wrinkles and prevents breakage, ensuring every label on the roll is used6.
Yes. The labeling head features 8-dimensional adjustment, allowing for specification changes within minutes7. The Siemens PLC stores parameters for instant recall8.
Absolutely. All components are constructed from stainless steel and aluminum alloy to ensure a rust-free, non-polluting operation that meets GMP environment requirements9.
Feyvan provides a one-year warranty, lifelong maintenance, and on-site installation with professional staff training.
