Feyvan
3000*1500*1680mm
150 Kg
Zhangjiagang, China
304 stainless steel
beverages,pharmaceutical
4800~10000BPH
One Year and Life-long Technical Support

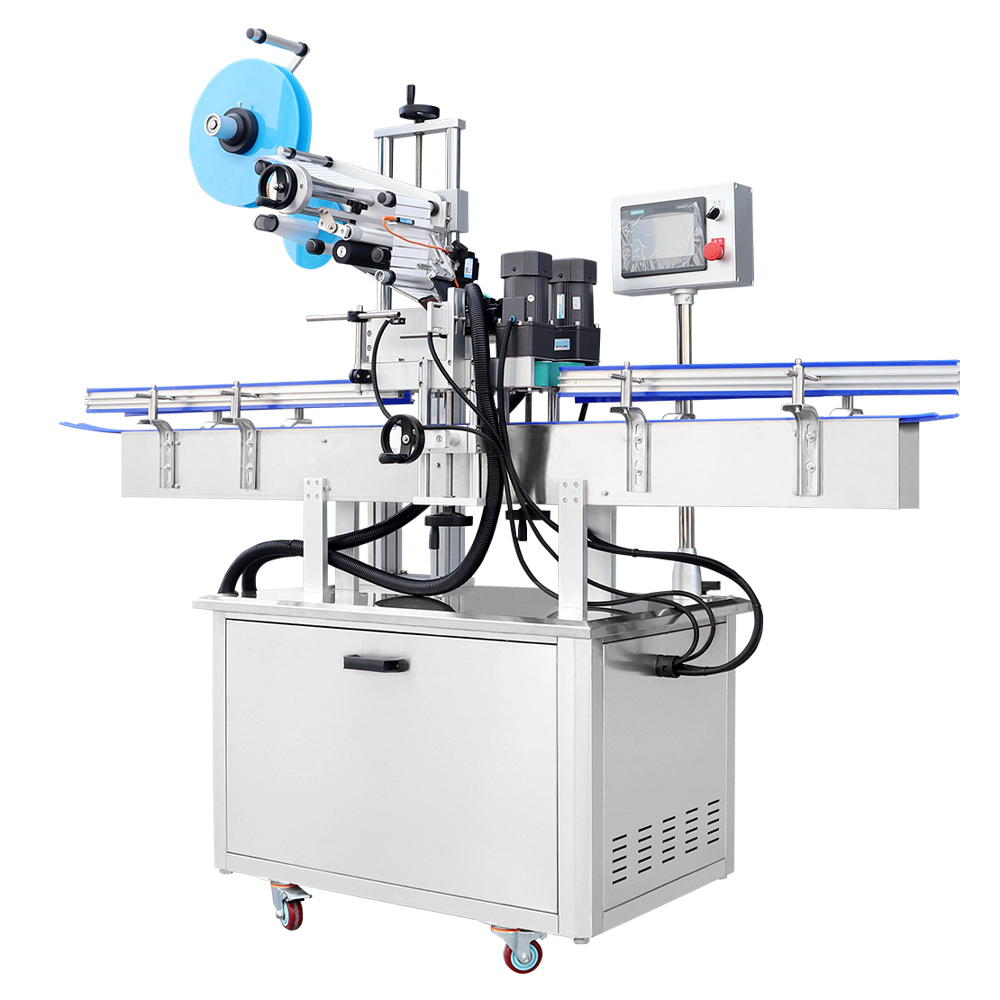

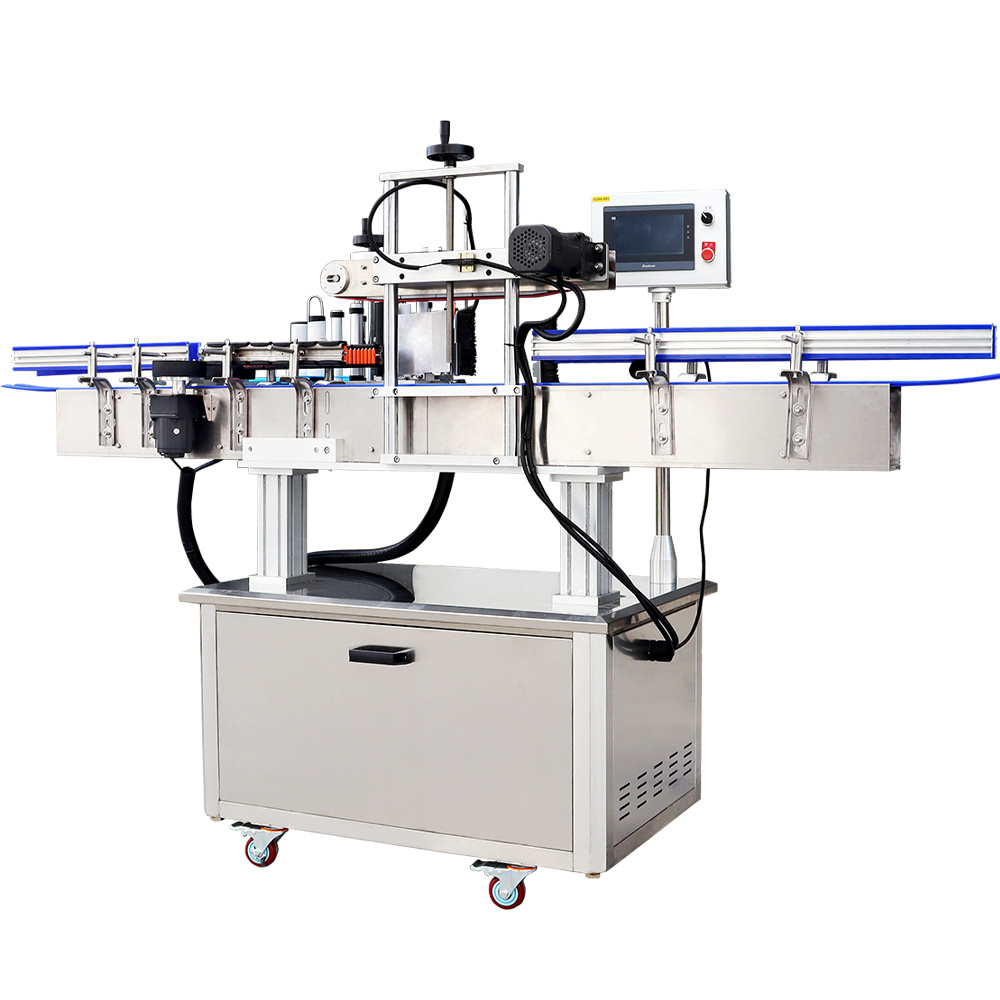

The FEYVAN Square Bottle Labeling Machine is a fully automatic adhesive labeling solution specially designed for square, rectangular, and flat-sided bottles. Engineered for industrial production environments, this Square Bottle Labeling Machine delivers precise label placement, stable bottle handling, and consistent performance even during long-term continuous operation.
FEYVAN designs each Square Bottle Labeling Machine based on real factory conditions, ensuring reliability, ease of operation, and compatibility with modern packaging lines. The machine is widely used in food, beverage, pharmaceutical, cosmetic, and daily chemical industries where labeling accuracy and efficiency are critical.
The FEYVAN Square Bottle Labeling Machine adopts a stable conveyor system combined with precise bottle positioning and adhesive label dispensing technology. Bottles are guided smoothly, detected by sensors, and labeled accurately on one or multiple flat sides.
Compared with manual or semi-automatic equipment, the FEYVAN Square Bottle Labeling Machine significantly improves production efficiency while maintaining uniform labeling quality across different bottle sizes and shapes.

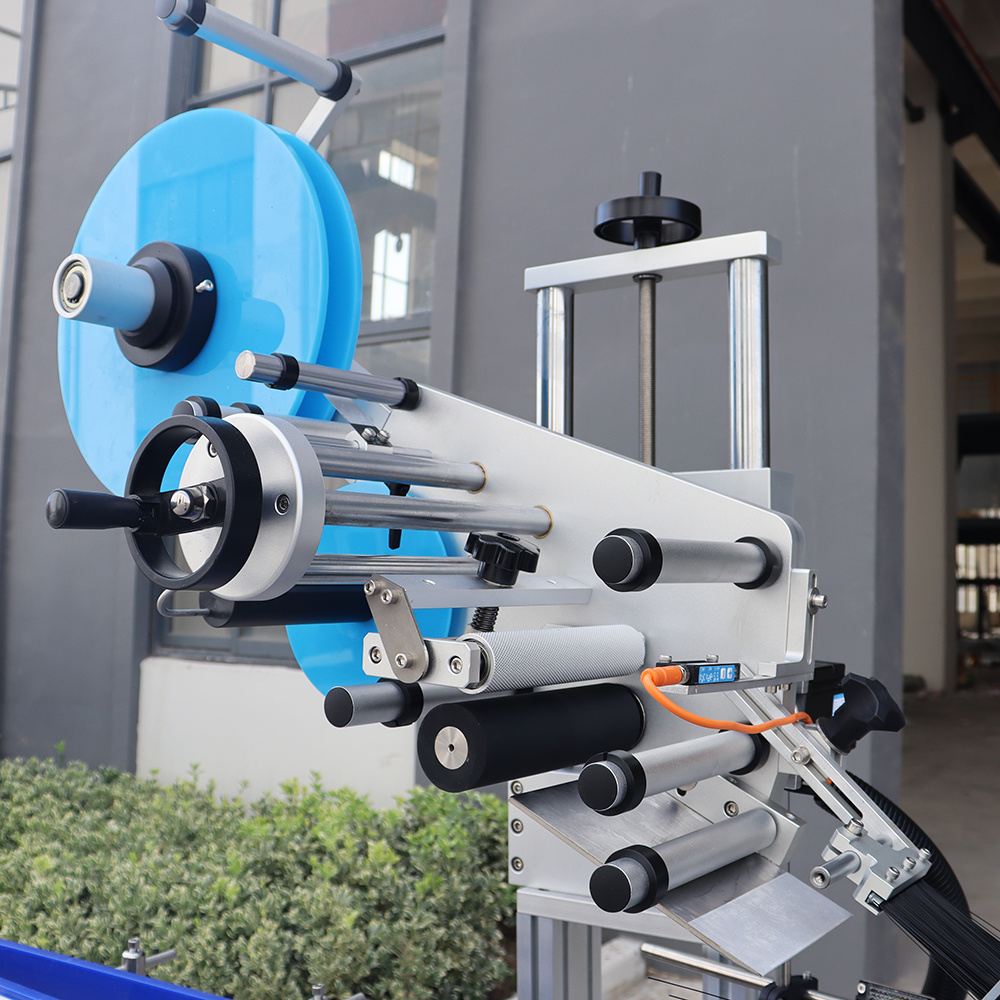

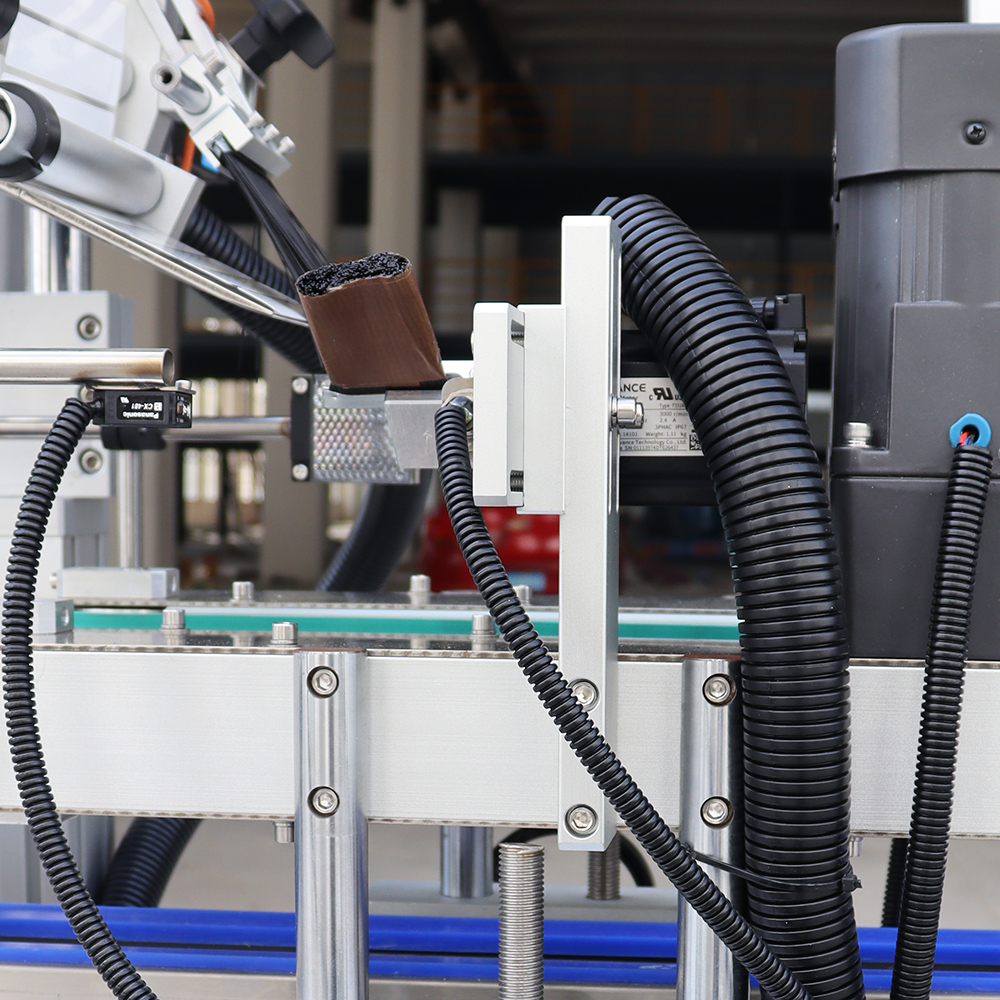

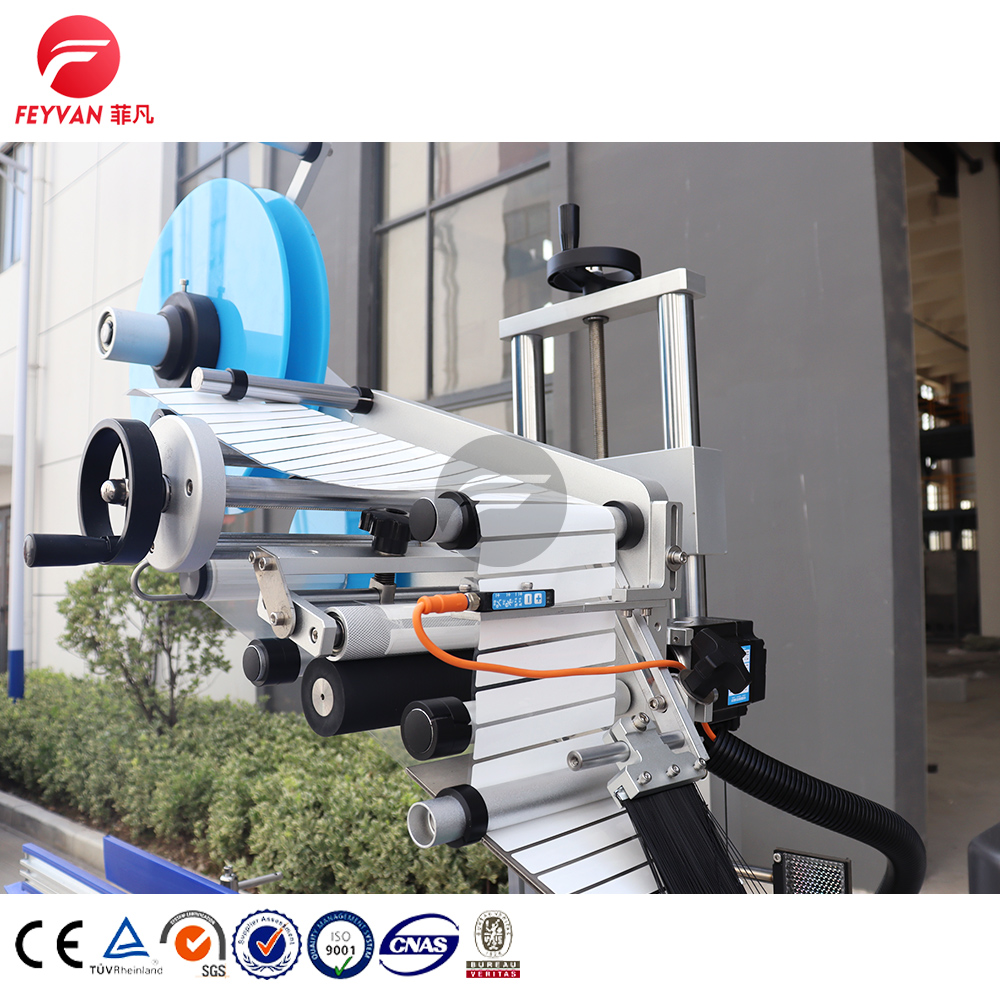

Bottles enter the conveyor of the Square Bottle Labeling Machine and are aligned by guiding mechanisms. Sensors detect bottle position and trigger the labeling system. Labels are dispensed smoothly and pressed firmly onto the bottle surface to ensure strong adhesion and precise alignment.
This working principle allows the FEYVAN Square Bottle Labeling Machine to handle square bottles with sharp edges and flat panels without label wrinkling or misalignment.
The FEYVAN Square Bottle Labeling Machine is built for stable, long-term industrial use.
Fully automatic operation for continuous production
Stable labeling for square and rectangular bottles
Adjustable labeling speed to match filling and capping machines
Suitable for single side, double side, or multi-side labeling
High labeling accuracy for premium packaging

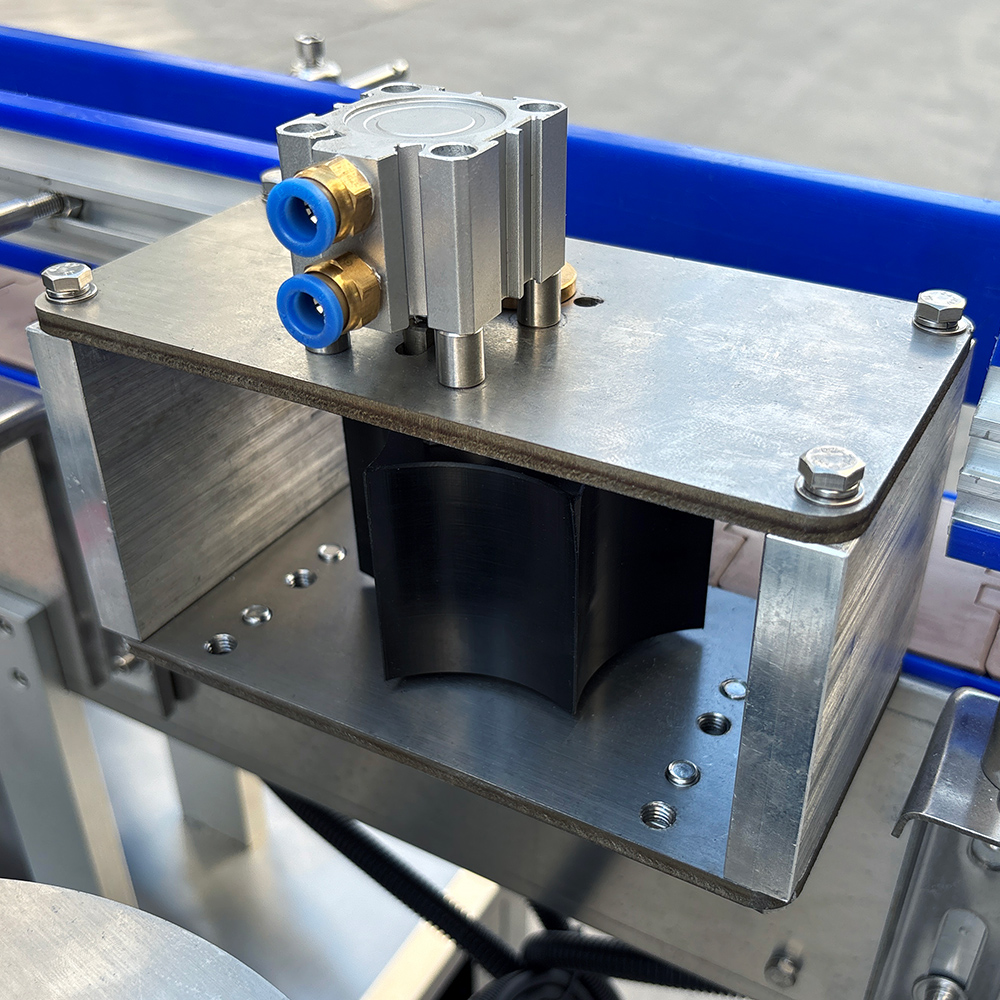

Strong bottle positioning to prevent shifting
SUS304 stainless steel frame for durability and hygiene
Designed for demanding factory environments
Touchscreen HMI for easy parameter adjustment
Quick changeover for different bottle sizes
Simple maintenance with standardized components
Practical design based on FEYVAN engineering experience
Below are the standard technical parameters of the FEYVAN Square Bottle Labeling Machine. Custom configurations are available upon request.
Item
Specification
Labeling Speed | 0.1 – 45 m/min (adjustable) |
Labeling Accuracy | ±1 mm (depending on bottle shape) |
Label Width | 15 – 130 mm (customizable) |
Max Label Length | 350 mm |
Applicable Bottle Type | Square / Rectangular bottles |
Conveyor Height | 900 mm (adjustable) |
Label Roll Inner Diameter | 152 mm |
Label Roll Max Outer Diameter | Φ500 mm |
Label Type | Adhesive |
Power Supply | 220V / 50Hz |
Total Power | 3000 W |
Air Pressure | 3 – 5 KG |
Overall Dimensions | 3000 × 1500 × 1680 mm |
Machine Weight | Approx. 400 kg |
The FEYVAN Square Bottle Labeling Machine is suitable for a wide range of industries.
Sauce bottles
Oil bottles
Condiment containers
Medicine bottles
Lotion and cream containers
Cosmetic packaging
Detergent bottles
Household chemical containers
Personal care product bottles
The flexible design of the FEYVAN Square Bottle Labeling Machine allows fast changeover, making it ideal for factories with multiple SKUs.
Each FEYVAN Square Bottle Labeling Machine integrates reliable electrical and control components to ensure stable operation.
PLC control system for precise process management

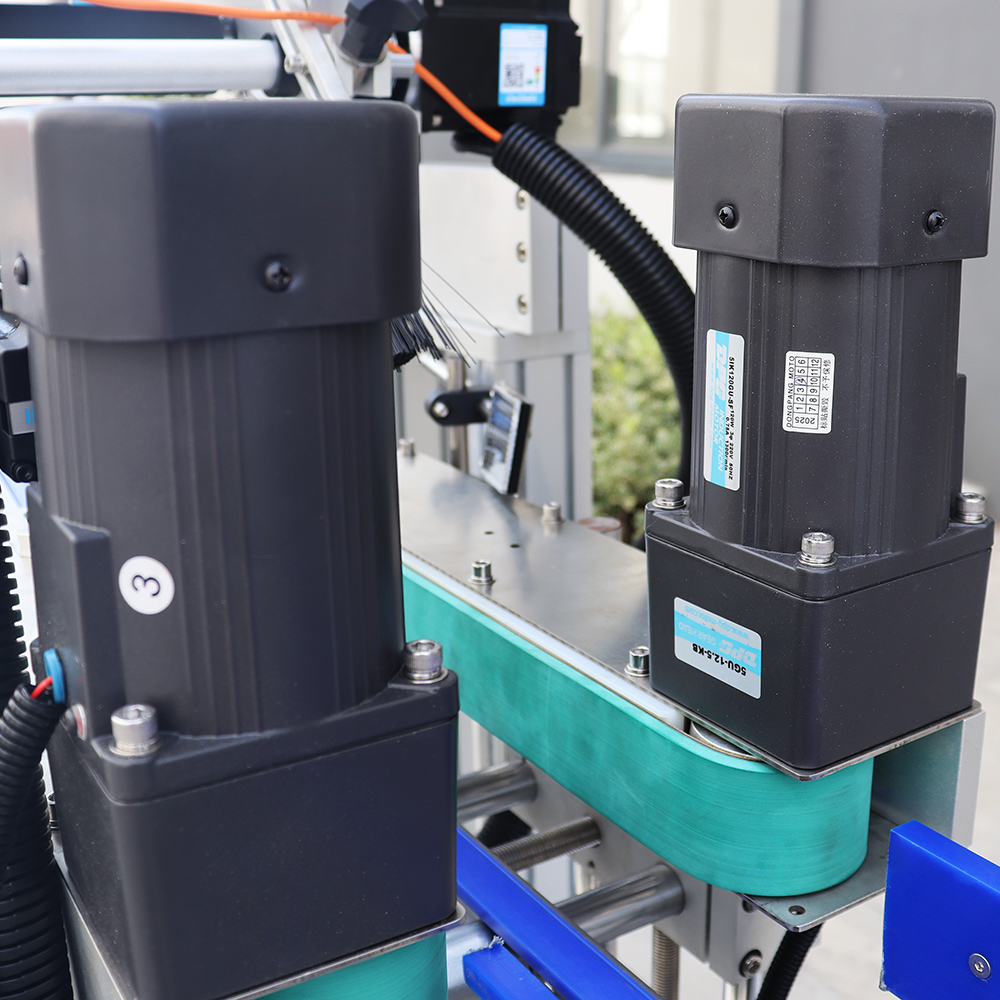

Servo or frequency-controlled drives
High-sensitivity sensors for bottle and label detection
Multilingual touchscreen HMI
This system ensures smooth synchronization with upstream and downstream equipment.
The FEYVAN Square Bottle Labeling Machine can operate as a standalone unit or be integrated into a complete packaging line.
Filling machines
Capping machines
Conveying systems
Shrink wrapping or carton packing machines
FEYVAN provides engineering support to ensure smooth line integration and speed synchronization.
Choosing FEYVAN means choosing a manufacturer with proven technical strength and factory experience.
Over 20 years of labeling machinery experience
In-house assembly and testing
Stable solutions for global customers
Professional technical support
Turn-key packaging line capability
Long-term spare parts availability
Every FEYVAN Square Bottle Labeling Machine is built to deliver long-term production value.
FEYVAN provides comprehensive after-sales support:
One-year warranty
Online technical assistance
Installation and commissioning guidance
Operator training
Our goal is to ensure your Square Bottle Labeling Machine operates efficiently throughout its lifecycle.
It is used for automatic adhesive labeling of square and rectangular bottles in food, cosmetic, pharmaceutical, and chemical industries.
Yes, the FEYVAN Square Bottle Labeling Machine can be configured for single side, double side, or multi-side labeling.
The labeling accuracy is ±1 mm, depending on bottle shape and material.
Yes, FEYVAN offers customization for bottle size, label size, speed, and line integration.
Yes, the FEYVAN Square Bottle Labeling Machine can work independently or be fully integrated with filling, capping, and packing lines.
Yes, FEYVAN provides long-term technical support, spare parts supply, and after-sales service.
