Feyvan
3000*1500*1680mm
150 Kg
Zhangjiagang, China
304 stainless steel
beverages,pharmaceutical
4800~10000BPH
One Year and Life-long Technical Support

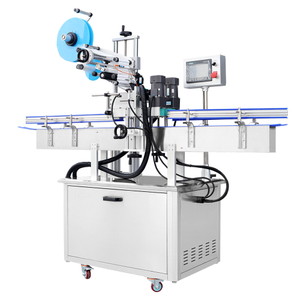

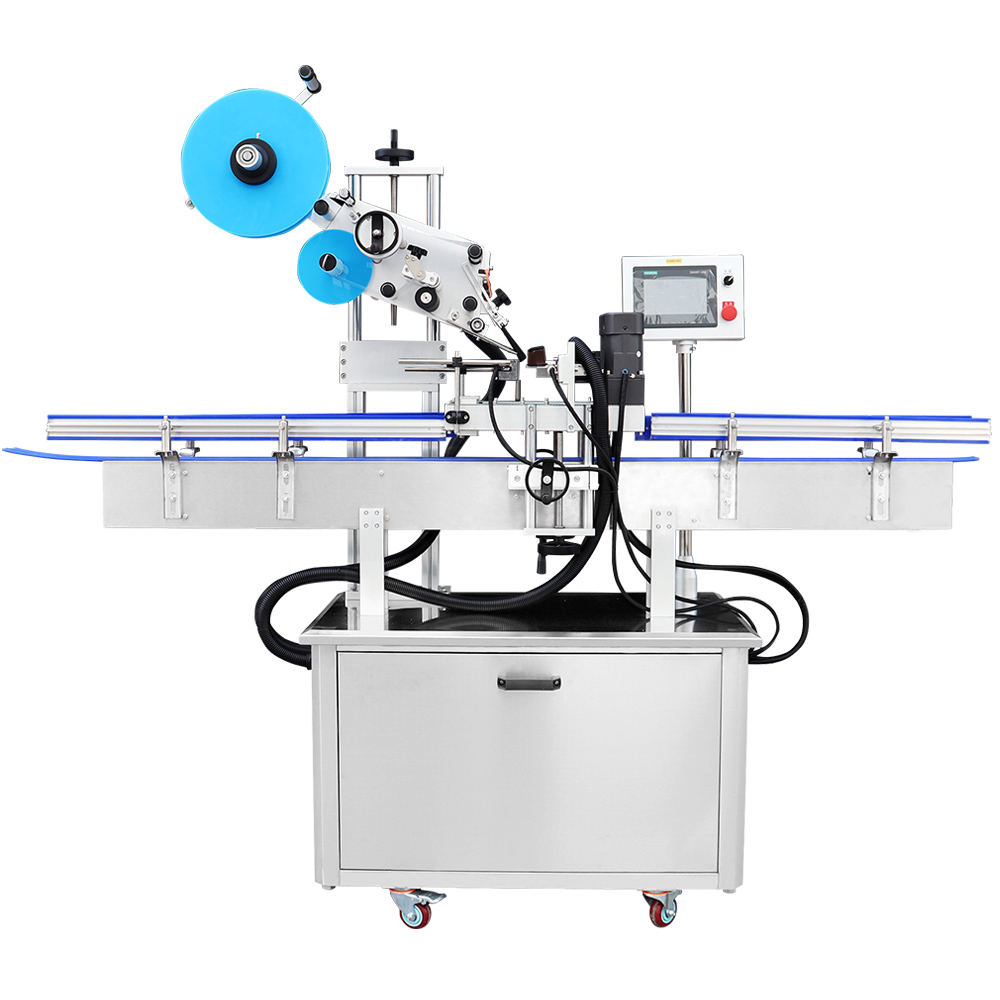

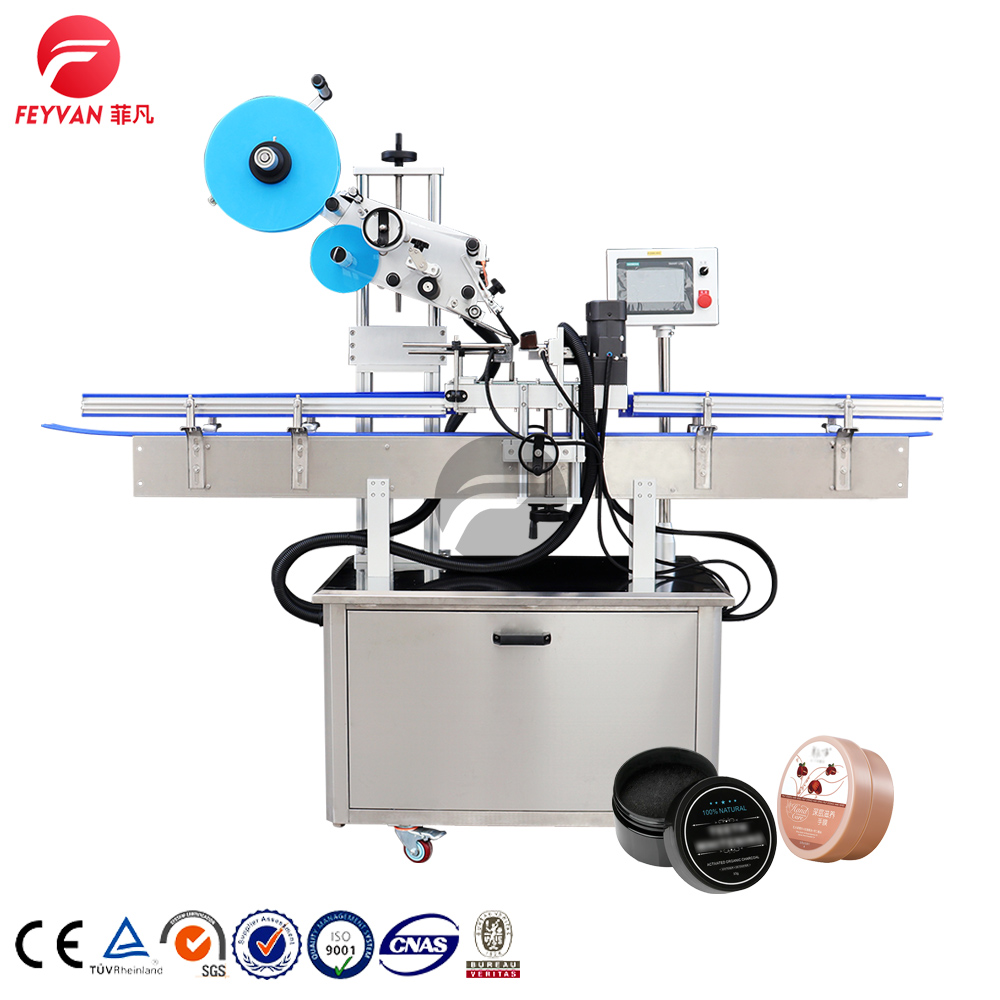

The FEYVAN Flat Bottle Labeling Machine is a fully automatic adhesive labeling solution specifically designed for flat bottles, square bottles, and irregular-shaped containers. This Flat Bottle Labeling Machine provides stable bottle positioning, precise label application, and reliable performance for continuous industrial production.
With extensive experience in labeling automation, FEYVAN engineers each Flat Bottle Labeling Machine to meet real factory demands. The machine is widely used in food, beverage, cosmetic, pharmaceutical, and daily chemical industries where flat or asymmetric containers require accurate and consistent labeling results
The FEYVAN Automatic Flat Bottle Labeling Machine adopts a reinforced linear conveyor combined with side-pressing and positioning mechanisms. Bottles are guided smoothly through the labeling station to ensure accurate label placement without deviation or wrinkling.
Compared with manual or semi-automatic solutions, this Flat Bottle Labeling Machine significantly improves production efficiency, reduces labor costs, and maintains consistent labeling quality even at higher operating speeds.

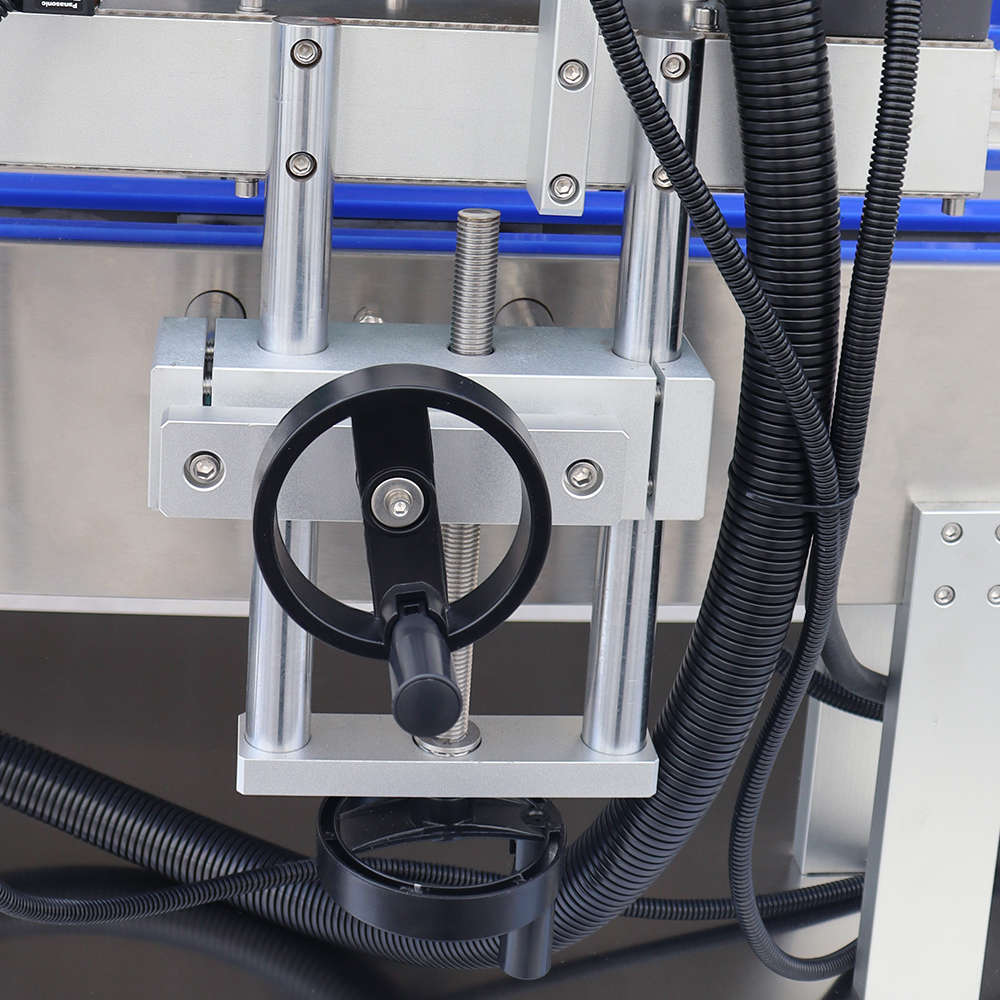

During operation, bottles enter the conveyor and are stabilized by adjustable guide rails and pressing devices. Sensors detect bottle presence and trigger precise label dispensing. The adhesive label is applied smoothly onto the flat surface and pressed firmly to ensure strong adhesion and accurate positioning.
The FEYVAN Flat Bottle Labeling Machine is suitable for empty or filled bottles, allowing flexible application across different production environments.
The FEYVAN Flat Bottle Labeling Machine supports continuous automatic operation and can be easily integrated with filling, capping, and packing equipment. It is ideal for medium- and high-speed production lines.
Thanks to its stable structure and optimized bottle control system, this Flat Bottle Labeling Machine achieves reliable labeling accuracy, even for wide or irregular flat bottles.

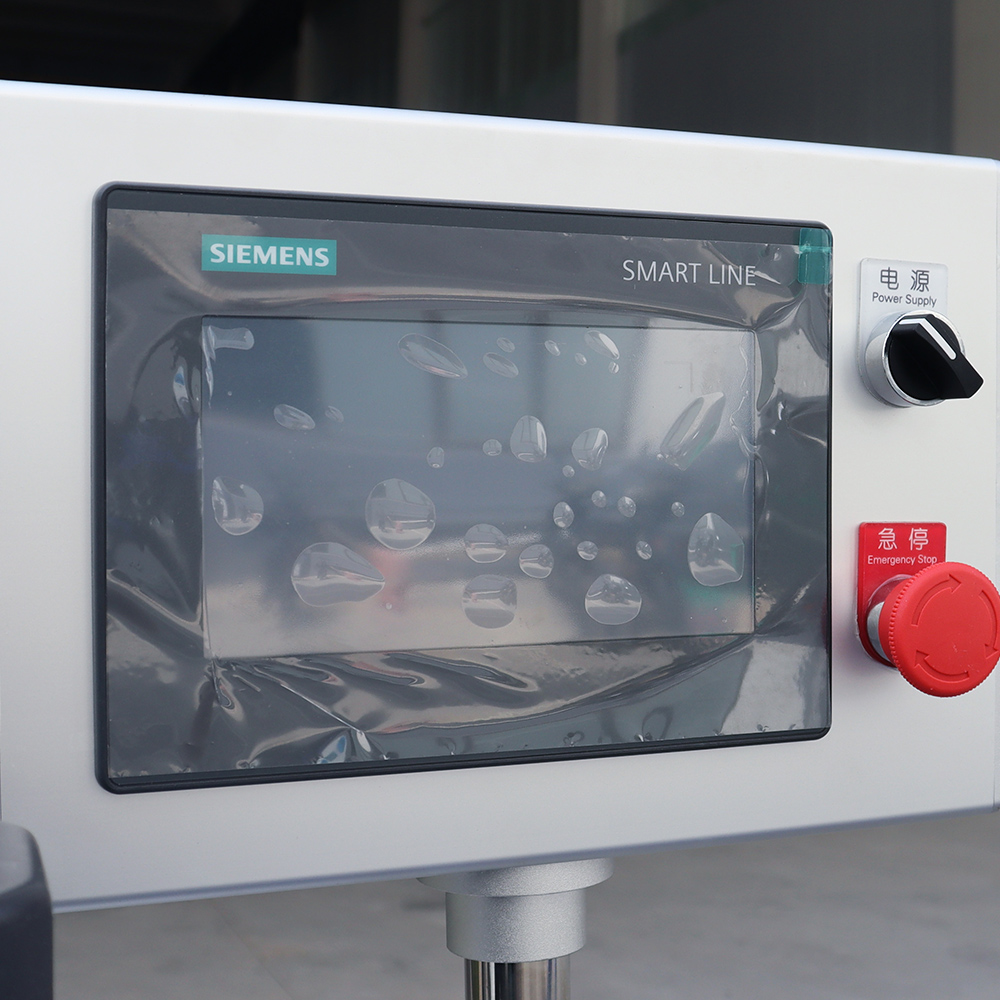

The Flat Bottle Labeling Machine is equipped with an intuitive touchscreen HMI for fast parameter setting and adjustment. Standardized components ensure easy maintenance and long-term operational reliability.
Below are the standard technical parameters of the FEYVAN Flat Bottle Labeling Machine. Custom configurations are available according to specific bottle samples and production requirements.
Technical Specifications(1).pdf
| Item | Specification |
Labeling Speed | 0.1–45 m/min (adjustable) |
Labeling Accuracy | ±1 mm (related to bottle shape) |
Label Width | Standard 15–130 mm (extendable based on bottle size) |
Label Max. Length | 350 mm |
Bottle Diameter | Customer-provided bottle samples (empty or filled) |
Work-Surface Height | 900 mm (adjustable according to bottle size) |
Labeling Colloid | Adhesive |
Inner Diameter of Roll Paper | 152 mm |
Max. Outer Diameter of Roll Paper | Φ500 mm |
Electricity Power | 220V / 50Hz / 3000W |
Operation Air Pressure | 3–5 KG |
Overall Dimensions (L×W×H) | 3000 × 1500 × 1680 mm |
Operation Weight | Approx. 400 kg |
The FEYVAN Flat Bottle Labeling Machine is suitable for sauce bottles, edible oil containers, beverage bottles, and food packaging with flat or square shapes.
This Flat Bottle Labeling Machine is widely used for cosmetic bottles, lotion containers, medicine bottles, and healthcare products where labeling accuracy and appearance are critical.
The machine supports labeling of detergent bottles, cleaning product containers, and household chemical packaging with flat surfaces.

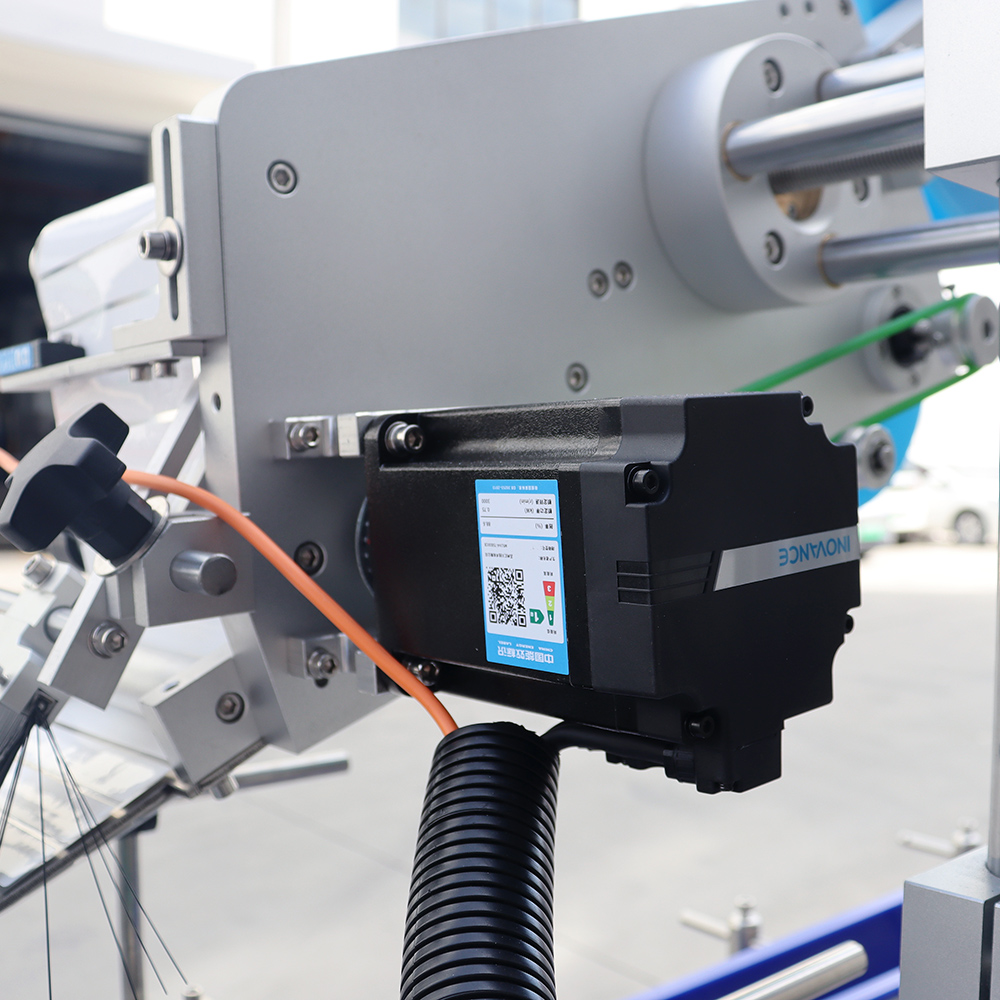

The FEYVAN Flat Bottle Labeling Machine uses a stable PLC control system combined with frequency-controlled drives and high-sensitivity sensors. This ensures accurate synchronization between bottle movement and label dispensing.
The multilingual touchscreen interface makes operation simple and suitable for international users.
The FEYVAN Flat Bottle Labeling Machine can operate as a standalone unit or be integrated into a complete bottling and packaging line, including rinsing, filling, capping, and downstream packing systems.
FEYVAN provides professional engineering support to ensure smooth speed matching, communication, and safety interlocking across the entire line.
With more than 20 years of experience in labeling and packaging machinery, FEYVAN designs Flat Bottle Labeling Machines based on real production environments and global customer requirements.
FEYVAN offers one-year warranty, online technical support, installation guidance, operator training, and long-term spare parts supply for every Flat Bottle Labeling Machine.
If you are looking for a reliable and efficient Flat Bottle Labeling Machine, FEYVAN is ready to support your project with professional solutions and competitive pricing.
FEYVAN – Professional Flat Bottle Labeling Machine Manufacturer for Global Markets
The FEYVAN Flat Bottle Labeling Machine is suitable for flat bottles, square bottles, and irregular-shaped containers. Customers can provide empty or filled bottle samples for evaluation.
The machine supports an adjustable labeling speed of 0.1–45 meters per minute, depending on bottle size and label specifications.
This Flat Bottle Labeling Machine is designed for self-adhesive labels.
Yes. FEYVAN provides customized solutions based on bottle size, label dimensions, and production line requirements.
Yes. The FEYVAN Flat Bottle Labeling Machine can be integrated with filling machines, capping machines, conveyors, and packing equipment.
