Feyvan
3000*1500*1680mm
200kg
China
304 stainless steel
Chemical Industry,Food & Beverage Industry,Daily Chemicals & Cleaning Products,Coatings, Inks & Paints Industry
6000~12000BPH
One Year and Life-long Technical Support

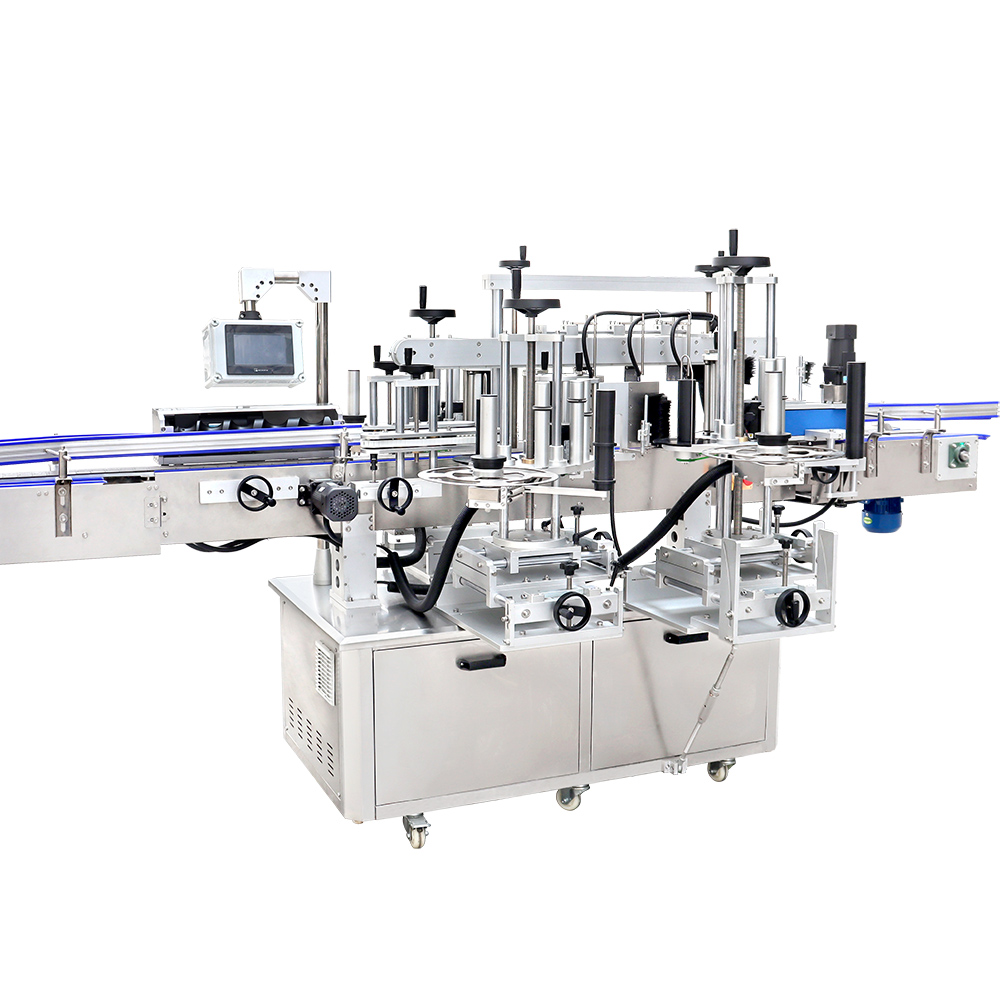

The Feyvan Fully Automatic Three-Side Labeling Machine is a high-performance industrial labeling solution developed by Zhangjiagang Feyvan Automation Equipment Co., Ltd. This advanced labeling system is designed for precise and stable application of labels on three symmetrical sides of bottles and containers, meeting the demanding needs of modern automated production lines.
Built with German precision engineering technology, this machine ensures exceptional labeling accuracy, high output capacity, and long-term reliability. It is widely used in industries such as bottled water, beverage, pharmaceutical, food, cosmetics, daily chemical, hardware, electrical products, and automotive packaging.
With a labeling speed of up to 10,000 bottles per hour and a precision tolerance of ±1mm, the Feyvan three-side labeling machine helps manufacturers improve packaging efficiency, reduce labor costs, and achieve a more professional product appearance.
The Feyvan labeling machine supports production speeds of 8000 to 10000 bottles per hour, making it ideal for medium to large-scale packaging facilities. The servo-controlled feeding system ensures smooth label dispensing even at high conveyor speeds.
Equipped with a Siemens PLC and Schneider touch screen interface, the machine automatically detects the dimensions of both the bottle and the label. Using high-speed CPU computation, the system aligns the label centerline perfectly with the bottle surface, ensuring consistent positioning.
The labeling system uses advanced rotary encoder synchronization between the labeling head and the conveyor line. This ensures that labeling accuracy is not affected by production speed or voltage fluctuations, significantly improving labeling stability.
Powered by Inovance servo motors and drivers, the label feeding process operates under a closed-loop control system. This guarantees label feed accuracy of up to 0.3mm, ensuring premium labeling results.
The entire machine frame is manufactured from high-quality stainless steel with specialized surface treatment to prevent corrosion. This design ensures long-lasting durability, especially in humid or high-speed industrial environments.
The machine can apply various types of labels including:
Self-adhesive paper labels
Transparent film labels
Metallic foil labels
Pearlized labels
PET and PVC shrink sleeve labels
The German SICK capacitive label sensors detect label thickness variations and work effectively with all label materials.

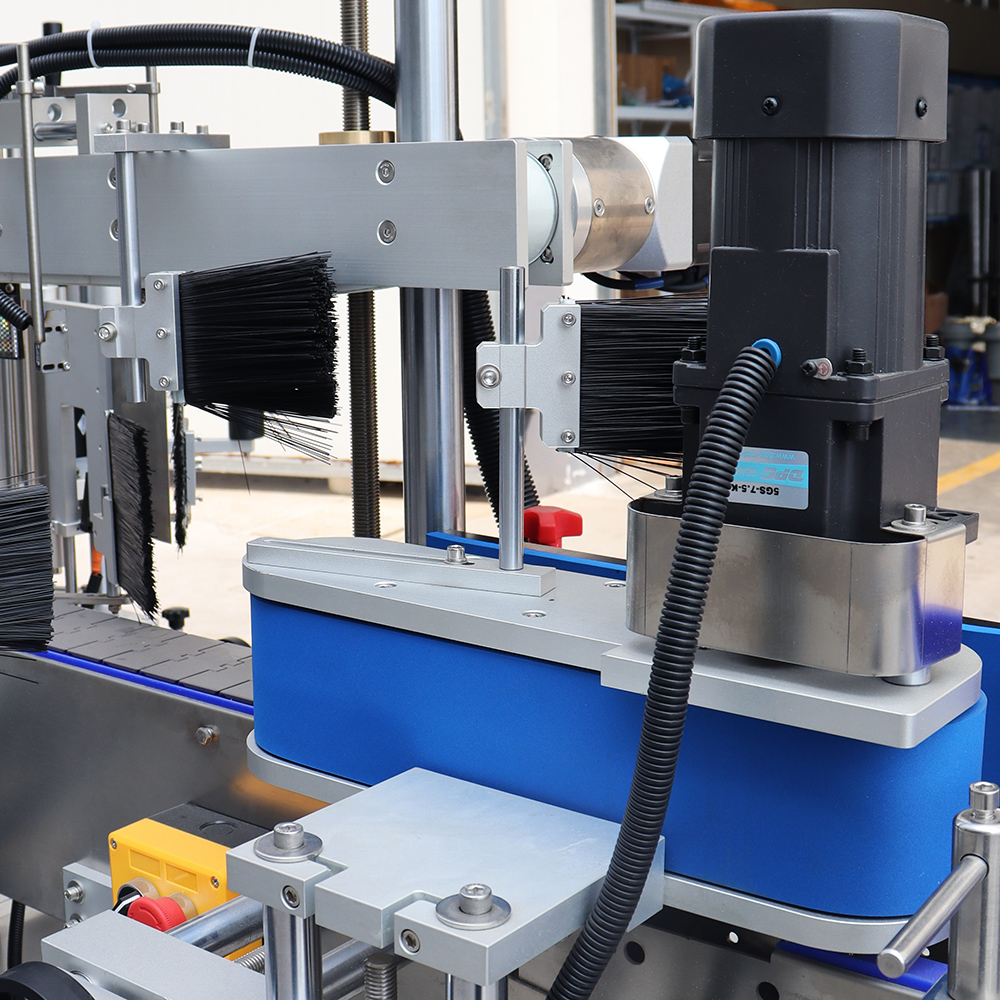

A segmented top pressure belt stabilizes bottles during labeling, preventing height differences from affecting label accuracy. The upgraded chain-driven pressure arm system eliminates gear wear and ensures more reliable performance.
The built-in stepless speed control system allows operators to adjust production capacity directly from the touchscreen. There is no need to manually modify conveyor or label speeds — all related parameters adjust automatically.

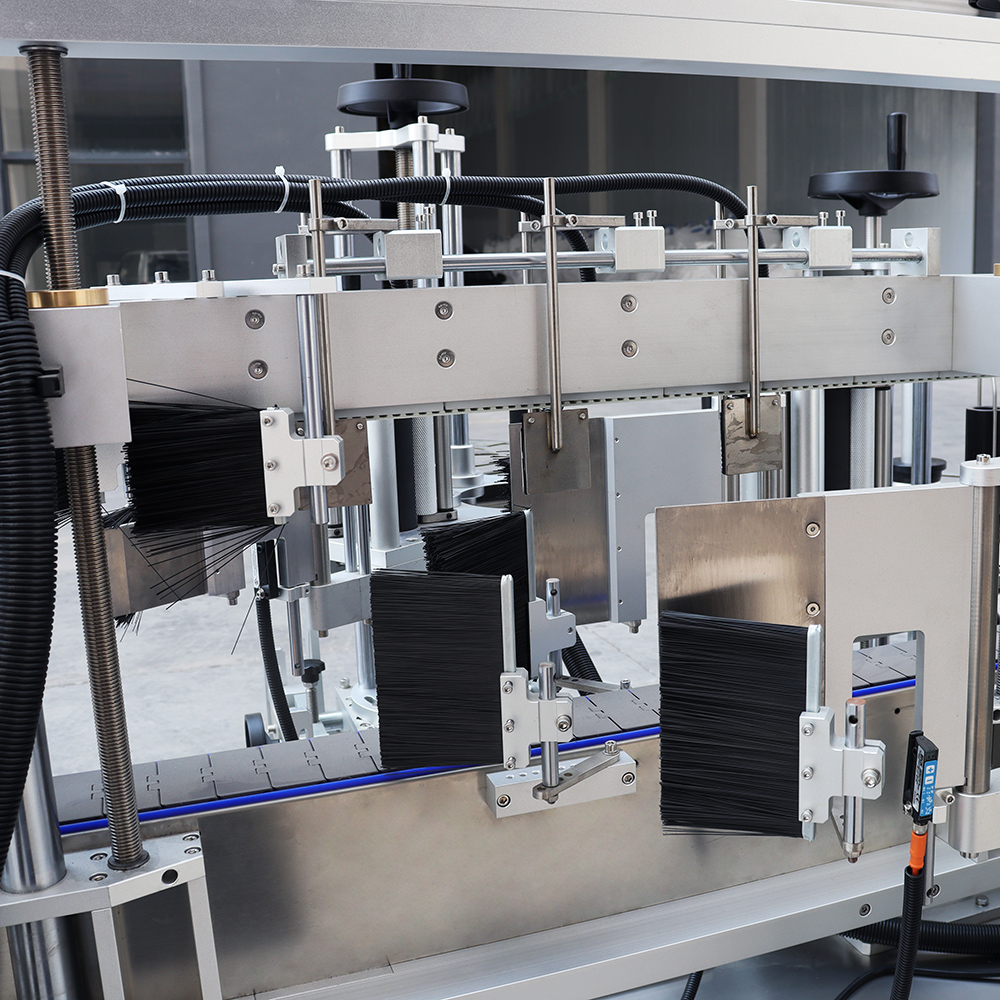

The quick-release waste paper roller allows operators to replace label backing material easily. The labeling mechanism supports interchangeable sponge rollers or brushes for different application requirements.
| Item | Specification |
|---|---|
| Power Supply | 220V / 50Hz / 3000W |
| Labeling Speed | 0.1 – 45 m/min adjustable |
| Production Capacity | 8000 – 10000 bottles/hour |
| Label Accuracy | ±1 mm |
| Label Feed Accuracy | ±0.3 mm |
| Max Label Roll Diameter | 350 mm |
| Label Width Range | 15 – 130 mm |
| Bottle Max Diameter | ≤130 mm |
| Air Pressure | 3 – 5 KG |
| Machine Dimensions | 3000 × 1500 × 1680 mm |
| Machine Weight | 400 KG |
PLC: Siemens (Germany)
Servo Motor: Inovance
Frequency Converter: Panasonic or Inovance
Touch Screen: Schneider Electric
Label Sensor: SICK (Germany)
Product Sensor: SICK high-speed photoelectric switch

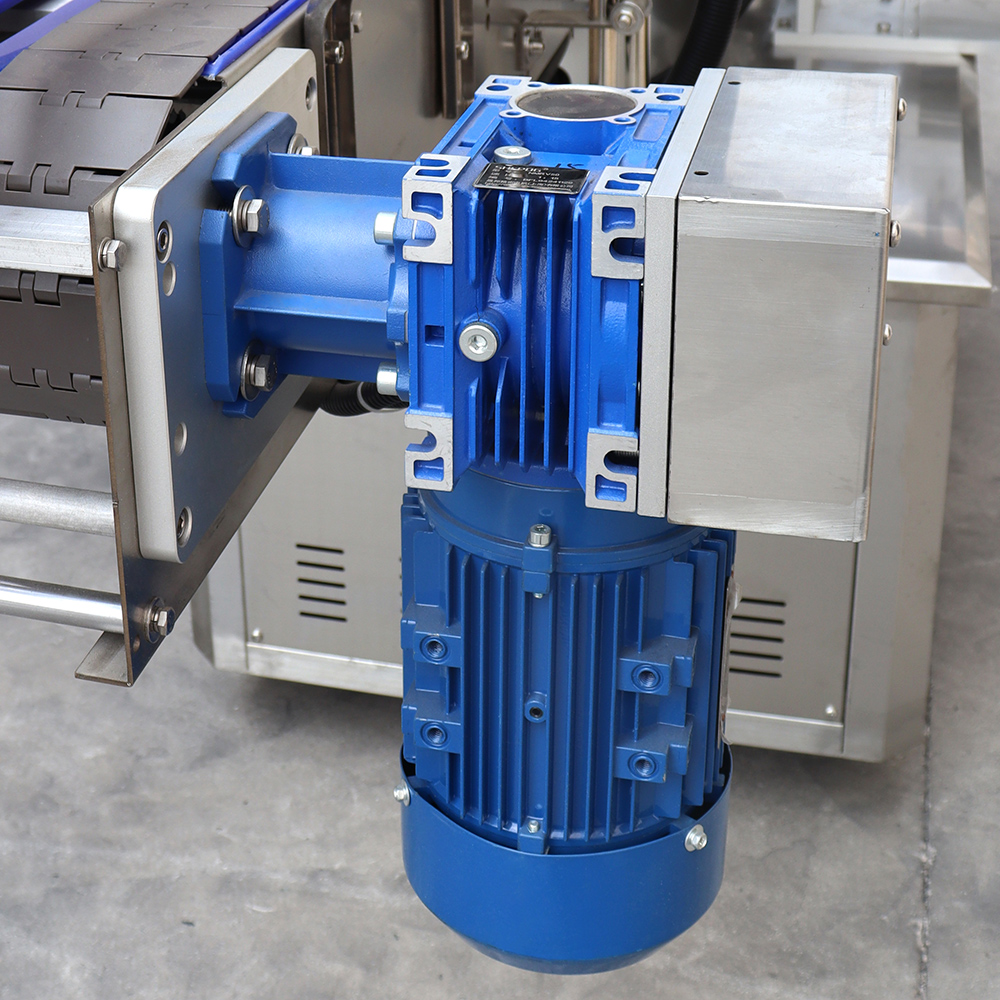

Motor System: Korean GPD speed and frequency motors
Frame: Stainless steel with adjustable leveling system
Bottle Feeding: Bottles enter the machine via the conveyor and are separated evenly by the automatic spacing system.
Sensor Detection: The high-speed SICK product sensor detects the bottle position.
Label Measurement: The machine automatically reads the label dimensions using capacitive label sensors.
Servo Feeding: The servo motor feeds the label precisely based on encoder tracking.
Three-Side Application: Labels are applied on three symmetrical sides simultaneously.
Pressure Stabilization: The segmented pressure belt ensures bottles remain fixed in position.
Finished Output: Bottles exit the system with smooth, bubble-free, and precisely aligned labels.
The Feyvan three-side labeling machine is widely used for:
Bottled water and beverage production
Pharmaceutical packaging
Food and sauce bottle labeling
Cosmetic and personal care containers
Industrial and hardware product labeling
Automotive and electrical component packaging
Feyvan specializes in the research, design, and production of automatic labeling and packaging equipment. Our engineering team has over 10 years of expertise in labeling automation and industrial packaging solutions.
Feyvan labeling machines are known for:
High production capacity
Reliable operation
Low energy consumption
Easy system integration
Attractive industrial design
We use world-leading electrical components including Siemens PLC, Schneider HMI, Panasonic servo systems, and German SICK sensors to guarantee precision and durability.
We can tailor machine configurations for different bottle sizes, labeling styles, and production line requirements.
1-year warranty and lifetime maintenance
Spare parts available at all times
Technical response within 1 hour
On-site service within 24 hours if required
Standard production time: 15 working days
Worldwide shipping
Delivered directly to your factory
Feyvan three-side labeling machines are widely used in bottled water, beverage, pharmaceutical, food, cosmetics, chemical, and packaging automation industries. They are ideal for labeling bottles, jars, cans, and containers on three sides with high accuracy.
This machine supports round bottles, square bottles, flat bottles, rectangular containers, and irregular bottle shapes. For customized bottle dimensions, Feyvan provides professional engineering support to ensure perfect compatibility with your production line.
The machine provides ±1mm labeling accuracy and can label 8000–10000 bottles per hour, making it a reliable solution for high-speed industrial labeling lines.
Feyvan machines feature a one-touch stepless speed adjustment system, allowing users to change production capacity directly on the screen. The conveyor and labeling speeds are automatically synchronized.
The system uses rotary encoder tracking technology and closed-loop servo motor control, ensuring that label feeding and product movement are perfectly synchronized. This eliminates errors caused by speed variation or voltage fluctuation.
Absolutely. Feyvan labeling machines are designed for seamless integration with bottle filling machines, capping machines, shrink sleeve machines, and complete packaging automation lines.
Yes. It is specifically designed for industries that require high-speed, high-precision labeling, including mineral water plants, juice and soft drink factories, pharmaceutical companies, and chemical packaging manufacturers.
The machine is powered by a Siemens PLC control system and Schneider touch screen HMI, ensuring easy operation, precise speed adjustment, and stable industrial performance.
