Feyvan
2000*800*1400mm
150 Kg
Zhangjiagang, China
304 stainless steel
beverages,pharmaceutical
4800~10000BPH
One Year and Life-long Technical Support

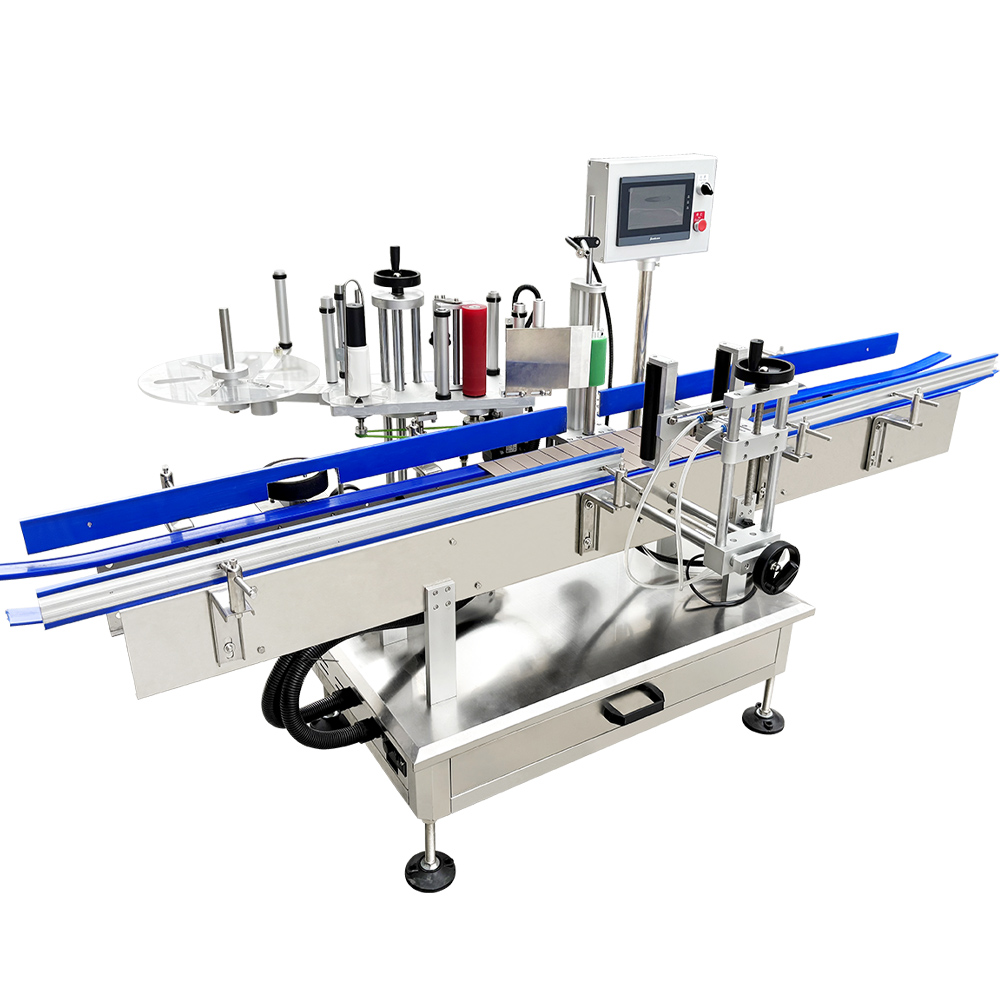

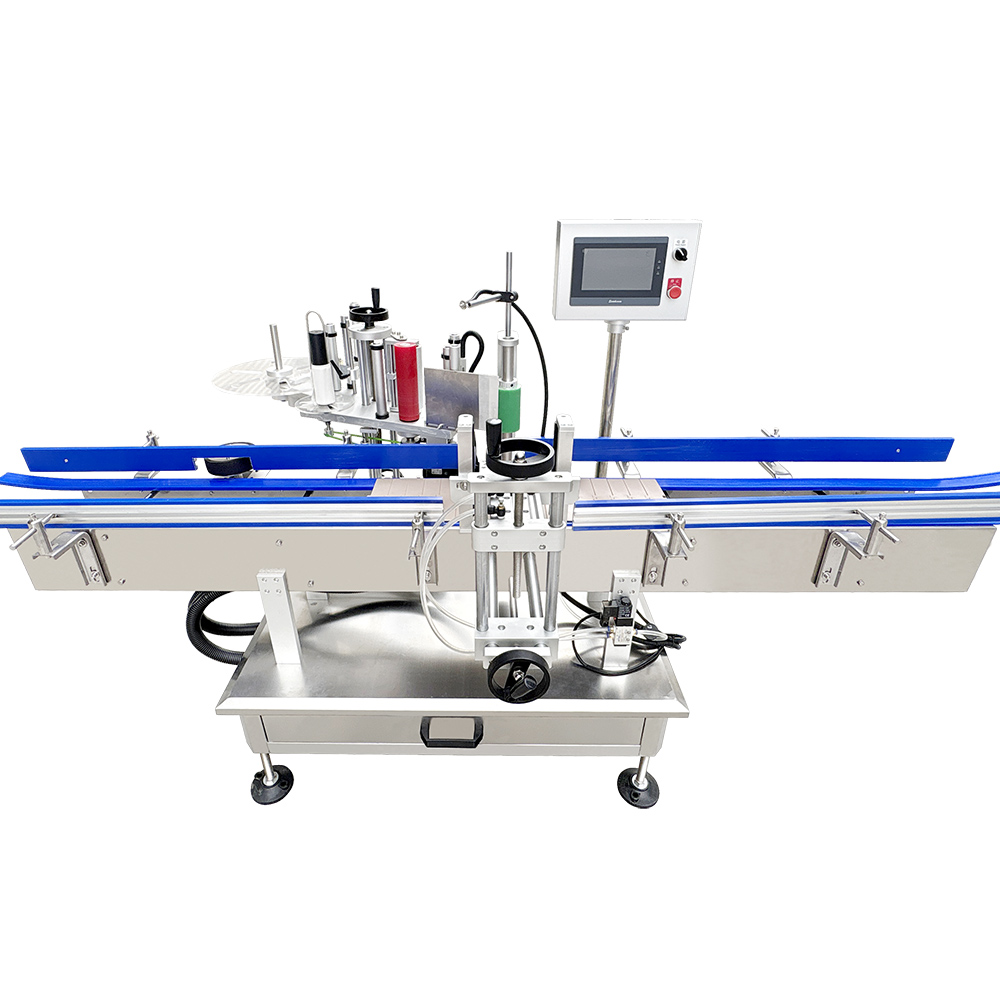

The FEYVAN Round Bottle Labeling Machine is a fully automatic single side adhesive labeling solution designed for accurate, stable, and high-efficiency labeling of round bottles and cylindrical containers. Engineered for continuous industrial production, this Round Bottle Labeling Machine delivers consistent label placement, smooth bottle handling, and reliable long-term performance.
Widely applied in beverage, food, pharmaceutical, cosmetic, and daily chemical industries, the FEYVAN Round Bottle Labeling Machine is ideal for manufacturers seeking dependable automation, easy operation, and seamless integration into existing bottling lines.
The FEYVAN Automatic Round Bottle Labeling Machine adopts a linear conveying structure combined with precision label dispensing and bottle positioning systems. Bottles are conveyed smoothly, detected by sensors, and labeled accurately with wrap-around or single side adhesive labels.
Compared with manual or semi-automatic solutions, this Round Bottle Labeling Machine significantly improves production efficiency while maintaining consistent labeling quality even at higher operating speeds.
Bottles enter the conveyor system and are guided into a stable labeling position. Sensors detect bottle presence and trigger precise label dispensing. The label is smoothly applied and pressed to ensure firm adhesion and accurate positioning throughout the labeling process.
The FEYVAN Round Bottle Labeling Machine is designed for real factory environments where reliability and efficiency matter most.
Fully automatic operation for continuous production
Stable labeling performance for round and cylindrical bottles
Adjustable labeling speed to match filling and capping lines
Labeling accuracy suitable for premium packaging
SUS304 stainless steel structure for hygiene and durability
Designed for long-term operation in demanding factory environments
Touchscreen HMI for quick setup and parameter adjustment
Easy maintenance with standardized components
Practical design based on FEYVAN’s factory experience
Below are the core technical parameters of the FEYVAN Round Bottle Labeling Machine. Custom configurations are available to meet specific production requirements.
List of Electronic Components.pdf
| Item | Specification |
Labeling Speed | 1 – 35 meters/min (adjustable) |
Labeling Accuracy | ±1 mm (depending on bottle shape) |
Applicable Bottle Diameter | 30 – 100 mm (customizable) |
Applicable Bottle Height | 30 – 350 mm |
Maximum Label Width | 130 mm |
Maximum Label Roll Diameter | 350 mm |
Label Core Diameter | 76.2 mm |
Power Supply | 220V / 50Hz |
Total Power | 3000 W |
Machine Material | SUS 304 Stainless Steel |
Overall Dimensions | 2000 × 800 × 1400 mm |
Machine Weight | Approx. 150 kg |
The FEYVAN Round Bottle Labeling Machine supports a wide range of industrial applications.
Water, juice, and soft drink bottles
Sauce, oil, and condiment containers
Medicine bottles and vials
Lotion, shampoo, and cosmetic containers
Household chemical bottles
Cleaning and personal care products
Its flexible design allows fast changeover between bottle sizes, making it ideal for factories producing multiple SKUs.
FEYVAN integrates reliable electrical and control components into every Round Bottle Labeling Machine to ensure stable and precise operation.
PLC control system for accurate process management
Servo or frequency-controlled drives for smooth labeling motion
High-sensitivity sensors for bottle and label detection
Multilingual touchscreen HMI interface
The FEYVAN Round Bottle Labeling Machine can operate independently or as part of a complete bottling and packaging line.
Bottle rinsing machines
Filling machines
Capping machines
Conveying systems
Shrink wrapping or carton packing machines
FEYVAN provides engineering support to ensure smooth communication, speed synchronization, and safety interlocking across the entire production line.
Choosing FEYVAN means choosing a manufacturer with proven engineering capability and factory experience.
Over 20 years of experience in labeling and packaging machinery
In-house assembly and testing before delivery
Proven solutions for international customers
Strong after-sales and technical support
Turn-key packaging line capability
Long-term spare parts availability
Every FEYVAN Round Bottle Labeling Machine is built to deliver stable performance and long-term production value.
One-year machine warranty
Online technical support and troubleshooting
Installation and commissioning guidance
Operator training support
Our goal is to ensure your Round Bottle Labeling Machine operates efficiently throughout its lifecycle.
If you are looking for a reliable Round Bottle Labeling Machine for your production line, FEYVAN is ready to support your project.
Contact us today to receive:
Technical consultation
Customized machine configuration
Competitive quotation
Production line integration proposal
FEYVAN – Professional Automatic Labeling Solutions for Bottling Industries.
The FEYVAN Round Bottle Labeling Machine is designed for automatic single side or wrap-around labeling of round bottles and cylindrical containers in food, beverage, pharmaceutical, cosmetic, and chemical industries.
The FEYVAN Round Bottle Labeling Machine supports an adjustable labeling speed of 1–35 meters per minute, allowing smooth integration with different filling and capping line speeds.
FEYVAN labeling machines offer a labeling accuracy of ±1 mm, ensuring precise label placement even for high-speed production lines.
The FEYVAN Round Bottle Labeling Machine supports:
Bottle diameter: 30–100 mm (customizable)
Bottle height: 30–350 mm
Special bottle sizes can be customized according to production requirements.
Maximum label width: 130 mm
Maximum label roll diameter: 350 mm
Label core diameter: 76.2 mm
This makes the FEYVAN Round Bottle Labeling Machine compatible with most standard self-adhesive labels.
Yes. The FEYVAN Round Bottle Labeling Machine can operate as a standalone unit or be fully integrated into complete bottling and packaging lines, including filling, capping, and packing systems.
FEYVAN machines are built with SUS 304 stainless steel and aluminum alloy, ensuring durability, hygiene compliance, and suitability for food and pharmaceutical environments.
Yes. FEYVAN provides customized labeling solutions, technical consultation, installation guidance, and long-term after-sales support for every Round Bottle Labeling Machine.
FEYVAN combines over 20 years of engineering experience, in-house manufacturing, reliable component selection, and practical production-line knowledge to deliver stable, cost-effective labeling solutions for global customers.
